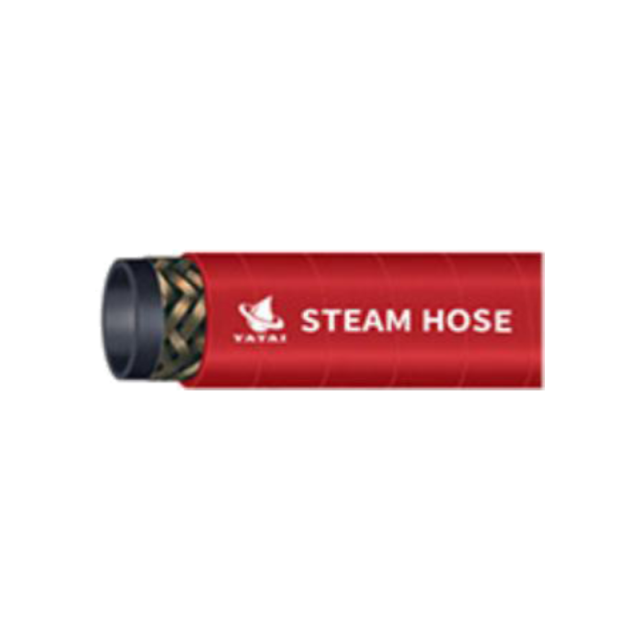

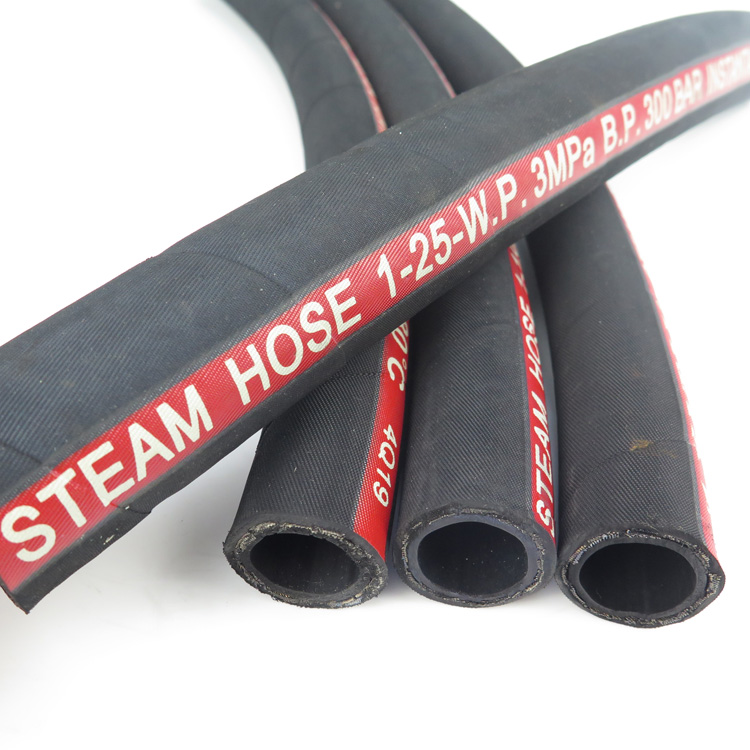

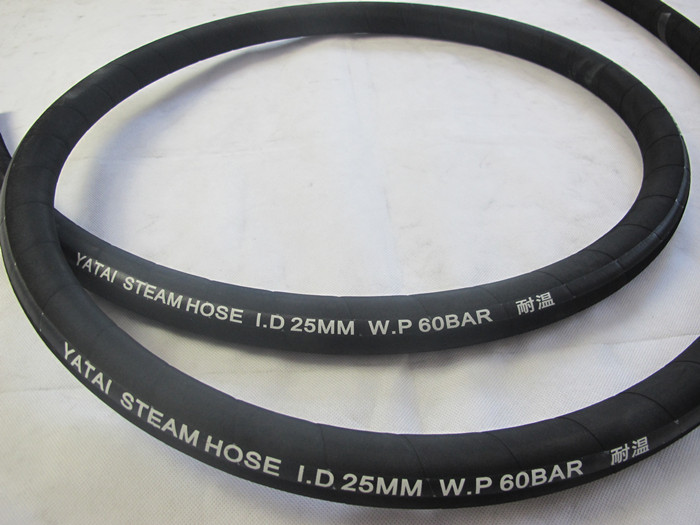

This steel wire braided steam pipe is specially designed to transport steam, hot water and hot air, and can withstand extreme temperatures ranging from minus 40 degrees Celsius to as high as 220 degrees Celsius. Its unique one-layer steel wire braided structure ensures excellent durability and reliability, and can operate stably in various environments. The color of the pipe can be black or red to meet the needs of different occasions. Made of high-quality materials, this steam pipe not only has excellent wear resistance, but also can effectively resist external pressure and impact. At the same time, its flexible weaving design also makes installation and maintenance simple and convenient. Whether in the industrial field or daily life, this steel wire braided steam pipe can provide excellent performance and reliable service to meet various heat transfer needs. The length is only schematic and can be customized according to actual needs.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	12.0	250	3600	1000	14400	90	50-100	0.19
-4	1/4"	6.4	13.2	225	3250	900	13000	100	50-100	0.22
-5	5/16"	7.9	15.2	215	3100	860	12400	115	50-100	0.26
-6	3/8"	9.7	17.4	180	2600	720	10400	125	50-100	0.34
-8	1/2"	12.7	20.5	160	2300	640	9200	180	50-100	0.41
-10	5/8"	16.0	23.7	130	1900	520	7600	205	50-100	0.51
-12	3/4"	19.1	27.7	105	1500	420	6000	240	50	0.60
-14	7/8"	22.2	30.5	100	1500	400	5800	280	50	0.75
-16	1"	25.4	33.7	97	1260	388	5040	300	50	0.85
-18	1.1/8"	28.6	40.3	90	1350	360	5220	400	40	1.10
-20	1.1/4"	31.8	42.5	62	900	248	3600	420	40	1.22
-24	1.1/2"	38.1	48.5	50	720	200	2880	500	40	1.41
-29	1.13/16"	46.0	57.2	45	675	180	2610	600	40	1.76
-32	2"	50.8	62.0	40	580	160	2320	630	40	1.88

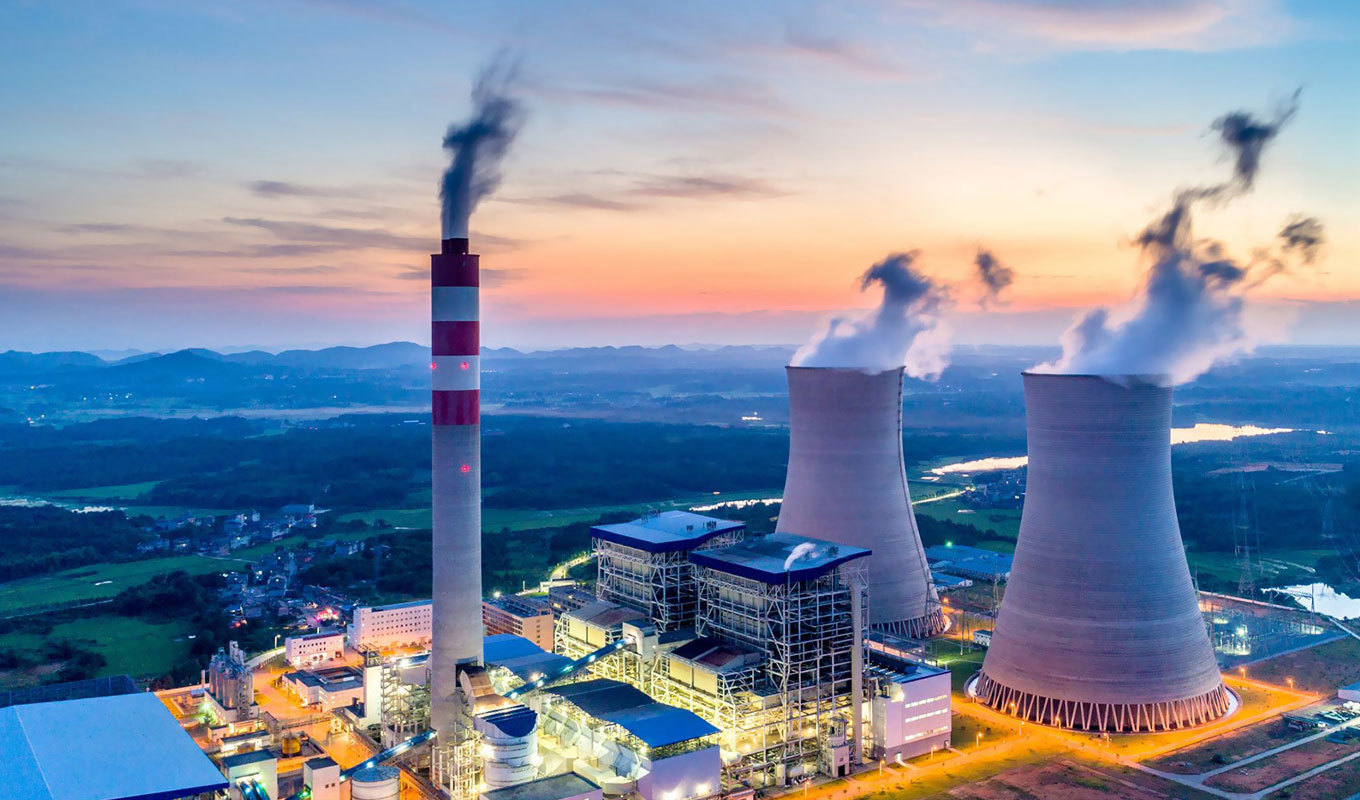

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
