Suitable for using petroleum-based hydraulic oil; Temperature Range: -40°C ~+100°C; Appearance: Smooth or wrapped; Color: Black or multiple colors

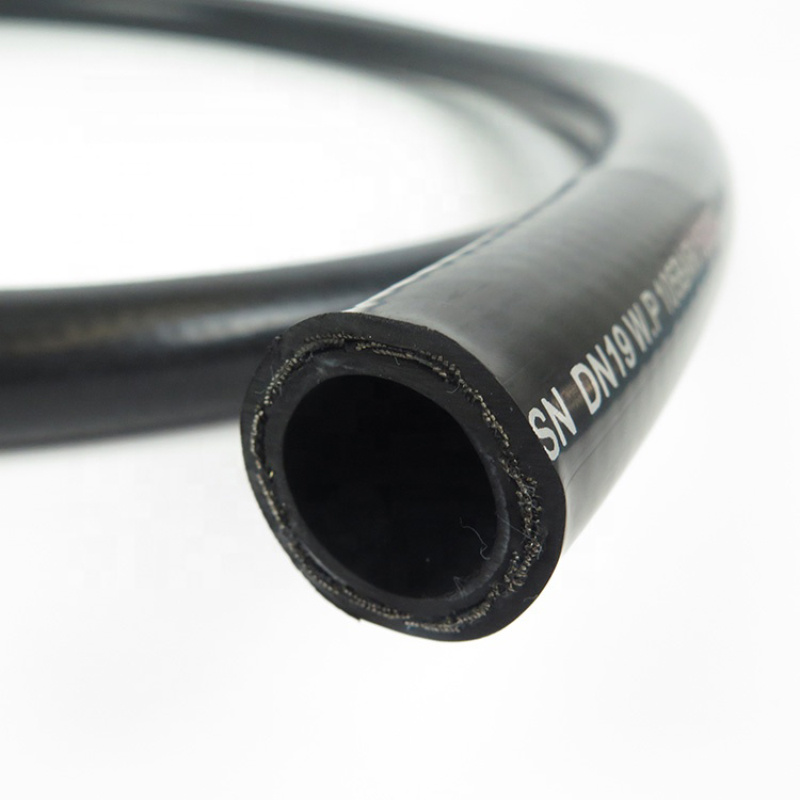

Steel wire braided hydraulic hose is a kind of high-quality fluid transmission equipment, which is widely used in various hydraulic systems. The hose uses petroleum-based hydraulic oil as the working medium, has excellent high temperature and low temperature resistance, and can work stably in the temperature range of -40°C to 100°C. Its unique design allows it to exhibit excellent reliability and durability in a variety of harsh environments.

Appearance, this hydraulic hose can be smooth or cloth design, both beautiful and practical. In terms of color, you can choose black or color to meet the needs of different customers. In addition, its length can be customized according to specific application scenarios to meet the needs of different customers.

In general, steel wire braided hydraulic hose is a high-performance, multi-functional, adaptable working medium transmission equipment, which can meet the needs of various hydraulic systems and is an ideal choice in the industrial field.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	13.3	415	6000	1660	24000	90	50-100	0.32
-4	1/4"	6.4	15.0	400	5800	1600	23200	100	50-100	0.38
-5	5/16"	7.9	16.5	350	5000	1400	20000	115	50-100	0.44
-6	3/8"	9.7	18.9	330	4800	1320	19200	125	50-100	0.54
-8	1/2"	12.7	22.0	275	4000	1100	16000	180	50-100	0.70
-10	5/8"	16.0	25.5	250	3600	1000	14400	205	50-100	0.80
-12	3/4"	19.1	29.3	215	3100	860	12400	240	50	0.95
-14	7/8"	22.2	32.0	190	2740	760	10960	270	50	1.13
-16	1"	25.4	35.5	165	2400	660	9600	300	50	1.32
-18	1.1/8"	28.6	39.9	145	2088	580	8350	360	40	1.63
-20	1.1/4"	31.8	44.3	125	1800	500	7200	420	40	1.95
-24	1.1/2"	38.1	50.3	90	1300	360	5200	500	40	2.20
-29	1.13/16"	46.0	57.0	70	1000	280	4000	565	40	2.49
-32	2"	50.8	63.9	80	1160	320	4640	630	40	2.78

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
