Suitable for fuel delivery in the fuel system or the crankcase of the internal combustion engine of the power locomotive; Temperature Range: -40°C ~+125°C

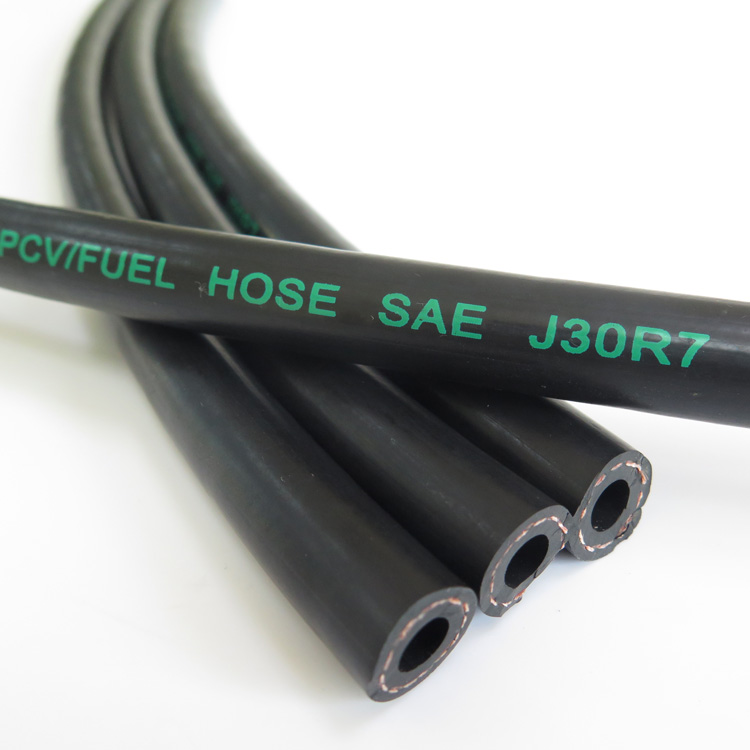

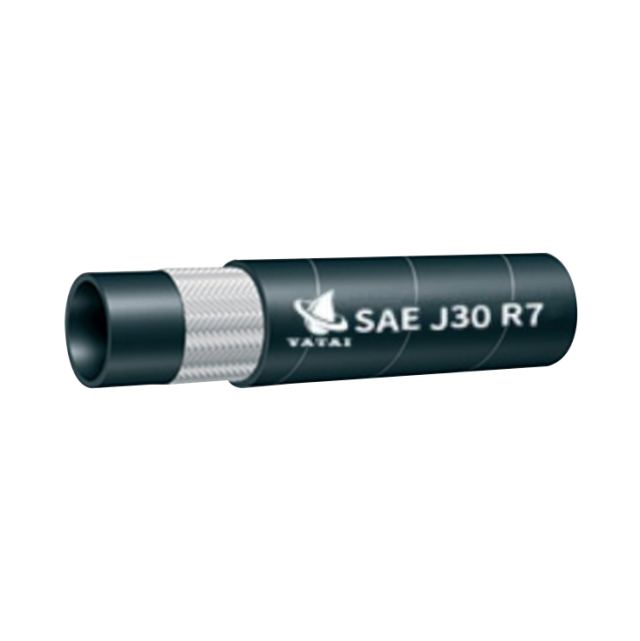

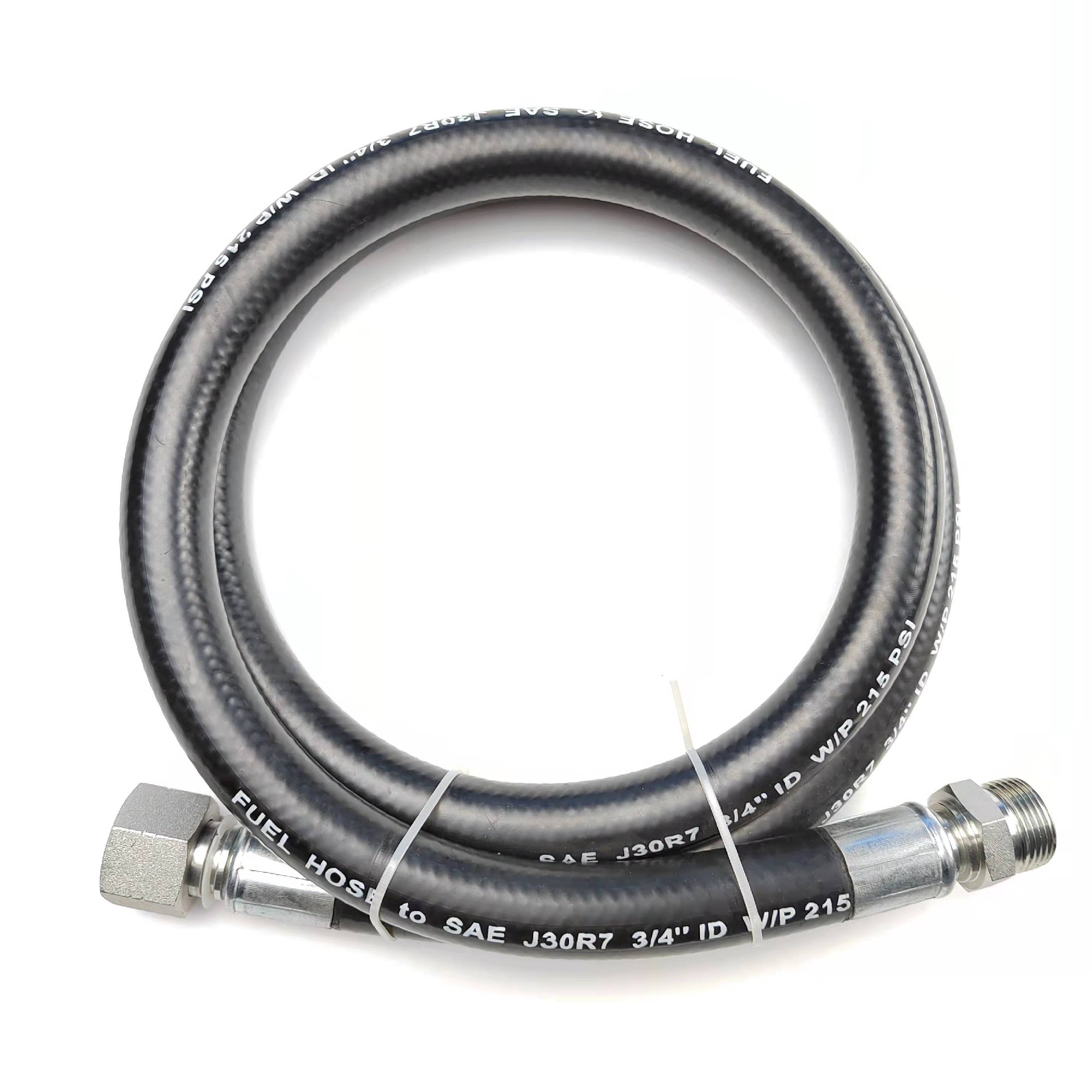

Fuel ethanol gasoline pipe is a kind of pipeline specially used to transport ethanol gasoline, which is characterized by excellent material, corrosion resistance, safety and reliability. The pipeline is mainly made of polymer materials, which can effectively resist the corrosion of ethanol gasoline and prolong the service life. In addition, its structure design is reasonable, easy to install, can be widely used in automotive, industrial and other fields. The fuel ethanol gasoline pipe has also played a positive role in environmental protection and energy saving, and promoted the popularization and application of ethanol gasoline. In short, the fuel ethanol gasoline pipe is an indispensable part in the field of modern transportation, providing safe and efficient fuel delivery services for vehicles and other vehicles.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	M/roll	kg/m
-2	5/32"	4	9.1	35	500	140	2000	40	50-100	0.12
-3	3/16"	4.8	10.3	35	500	140	2000	40	50-100	0.15
-4	1/4"	6.4	13	28	400	112	1600	45	50-100	0.16
-5	5/16"	7.9	14.6	28	400	112	1600	65	50-100	0.19
-6	3/8"	9.7	16.5	28	400	112	1600	80	50-100	0.24
-8	1/2"	12.7	20.4	28	400	112	1600	100	50-100	0.32
-10	5/8"	16.0	23.6	24	350	96	1440	160	50	0.39
-12	3/4"	19.1	27.6	21	305	84	1218	190	50	0.52
-14	7/8"	22.0	31.0	20	300	80	1200	220	50	0.60
-16	1"	25.4	34.5	17.5	250	75	1000	250	50	0.66
-20	1.1/4"	31.8	42.5	15	215	60	860	320	40	1.05
-24	1.1/2"	38.1	48.5	12	175	48	750	420	40	1.25
-28	1.3/4"	45.0	55.0	10	145	40	580	500	40	1.45
-32	2"	50.8	62.0	10	145	40	580	630	40	1.65
-38	2.3/8"	60	70.0	10	145	40	580	700	20	1.82
