For connection between a ship's fuel filler port and a ship's fuel tank,the fireproofouter layer meets the USCG's Class A for 2.5 minutes; Temperature Range: -30°C ~+100°C

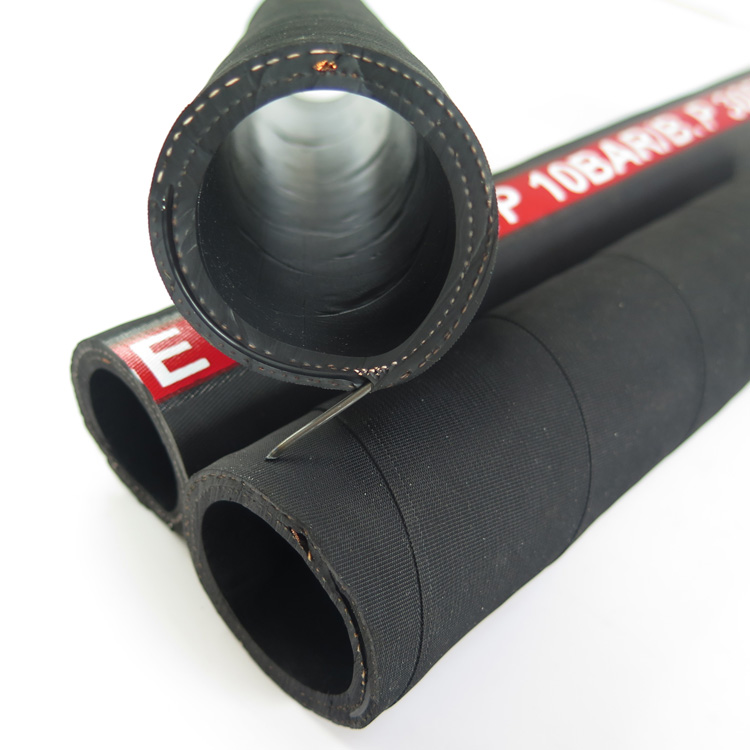

Marine suction and discharge fuel pipe is an important equipment used in offshore oil engineering, specially designed to suck and discharge fuel from the seabed. The pipe is usually made of high-strength wear-resistant materials, which can withstand the erosion of sea water and fuel oil. Its length can be customized according to specific needs, generally ranging from tens of meters to thousands of meters. The pipeline has good sealing and corrosion resistance, and can operate stably in harsh marine environment. In addition, it also has a flexible suction and discharge function, which can adapt to the work needs of different environments and provide a reliable guarantee for offshore oil exploration and production. In short, marine suction and discharge fuel pipe is an indispensable part of offshore oil engineering, which is of great significance to ensure the safety and efficiency of oil exploitation and production.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	M/roll	kg/m
-12	3/4"	19.1	30.8	10	145	30	435	114	60	0.76
-16	1"	25.4	36.8	10	145	30	435	152	60	0.94
-20	1.1/4"	31.8	44.8	10	145	30	435	191	60	1.25
-24	1.1/2"	38.1	51.4	10	145	30	435	229	60	1.56
-29	1.3/4"	45.0	58.4	10	145	30	435	270	60	1.80
-32	2"	50.8	64.4	10	145	30	435	305	60	2.01
-40	2.1/2"	64	78.4	10	145	30	435	384	60	2.61
-48	3"	76	90.8	10	145	30	435	456	60	3.16
-56	3.1/2"	89	106.2	10	145	30	435	534	60	4.56
-64	4"	102	119.2	10	145	30	435	612	60	5.16
-82	5"	127	146.2	10	145	30	435	762	60	6.92
-96	6"	152	171.6	10	145	30	435	912	60	8.36
-128	8"	203	224.8	10	145	30	435	1218	60	12.71
-164	10"	254	280.8	10	145	30	435	1524	10	20.79
-192	12"	304	334.2	10	145	30	435	1824	10	29.14

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
