Suitable for transporting chemical solvents and corrosive liquids with a concentration of 98%; Temperature Range: -40°C~+120°C ; Color: Black,blue,green

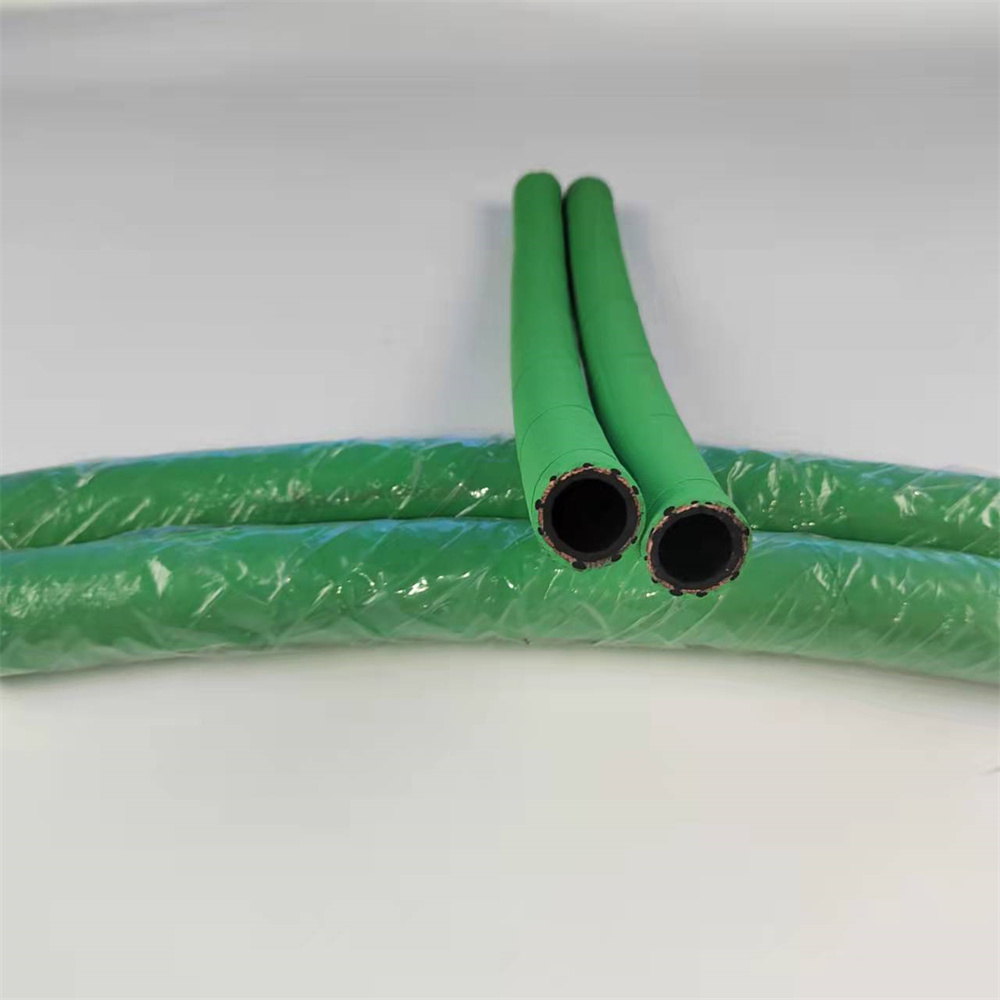

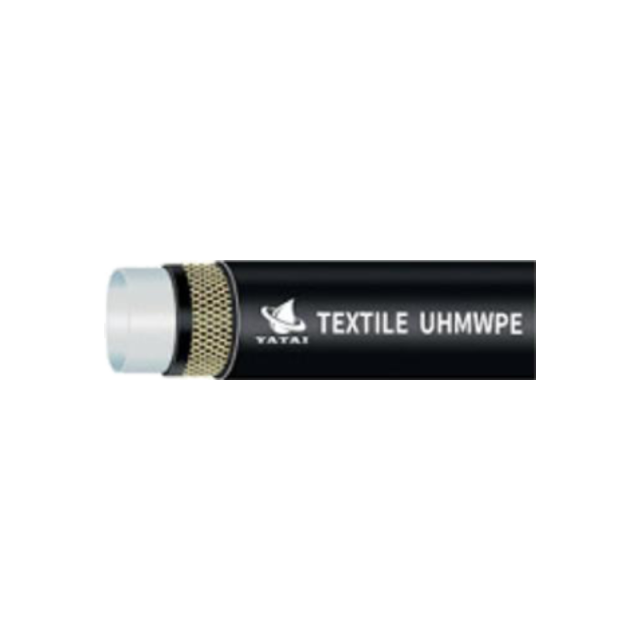

The woven chemical delivery pipe is a kind of pipeline specially designed to transport high concentration chemical solvents and corrosive liquids. This delivery tube can withstand chemical solvents up to 98% concentration, while ensuring stable operation in the temperature range from -40°C to +120°C, with excellent temperature resistance. The pipe is woven with precision fabric, which has a strong structure, anti-wear and anti-pressure, and effectively prolongs the service life. Its various colors, including black, blue and green, can meet the different working environment and user needs of the choice. In addition, this chemical delivery pipe is flexible in design, easy to install and maintain, and greatly reduces costs. Whether it is chemical production or liquid transportation engineering, this fabric woven chemical transportation pipe is an ideal choice, providing a reliable guarantee for the safe transportation of various corrosive liquids.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	12.0	35	500	140	2000	50	50-100	0.12
-4	1/4"	6.4	13.0	28	400	112	1600	65	50-100	0.13
-5	5/16"	7.9	14.6	28	400	112	1600	75	50-100	0.16
-6	3/8"	9.7	16.5	28	400	112	1600	75	50-100	0.21
-8	1/2"	12.7	20.4	28	400	112	1600	100	50-100	0.27
-10	5/8"	16.0	23.6	24	350	96	1400	125	50-100	0.33
-12	3/4"	19.1	27.6	21	300	84	1200	150	50	0.45
-16	1"	25.4	34.5	17.5	250	70	1000	180	50	0.57
-20	1.1/4"	31.8	42.5	15	215	60	860	240	40	0.95
-22	1.3/8"	35.0	46.0	13.5	200	54	800	300	40	1.05
-24	1.1/2"	38.1	48.5	12	175	48	700	360	40	1.15
-32	2"	50.8	62.0	10	145	40	580	500	40	1.55

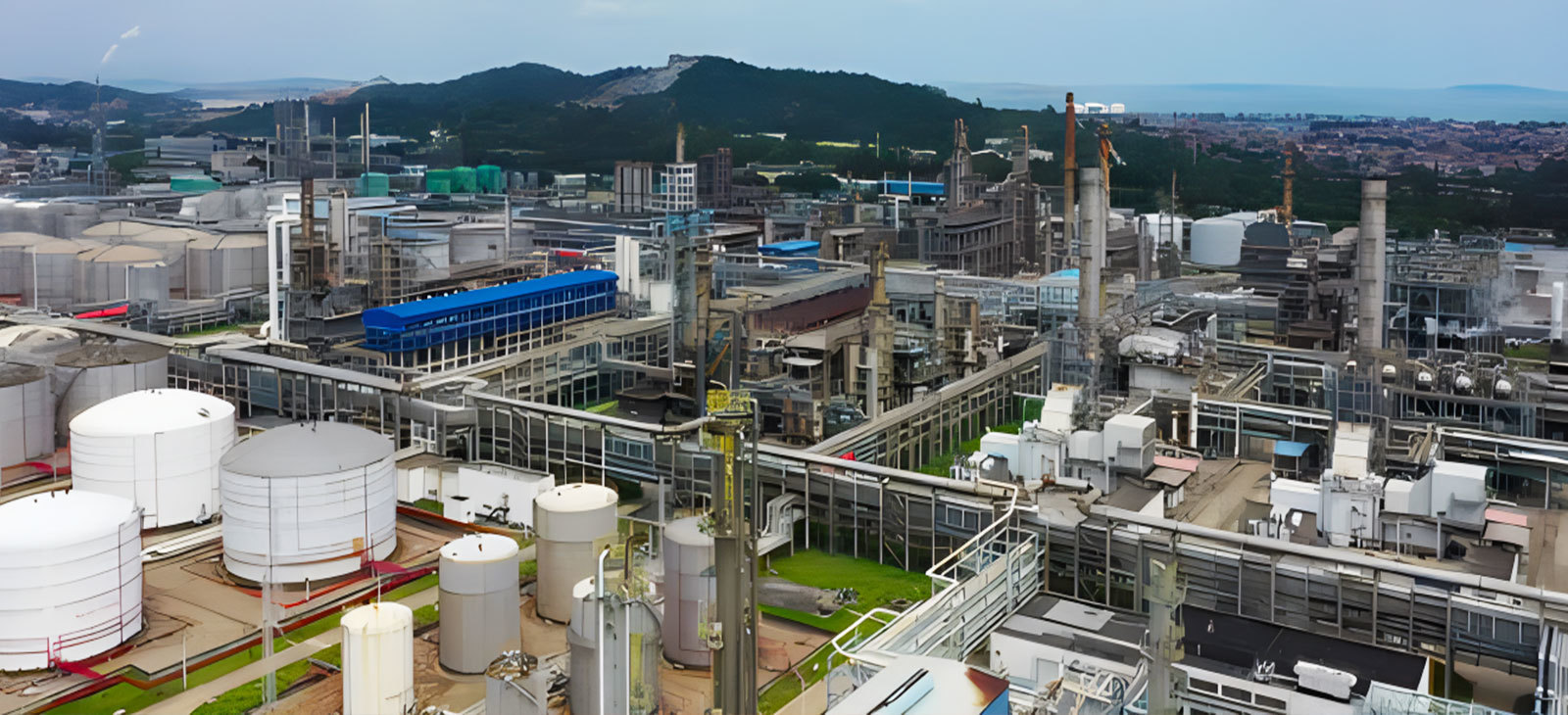

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
