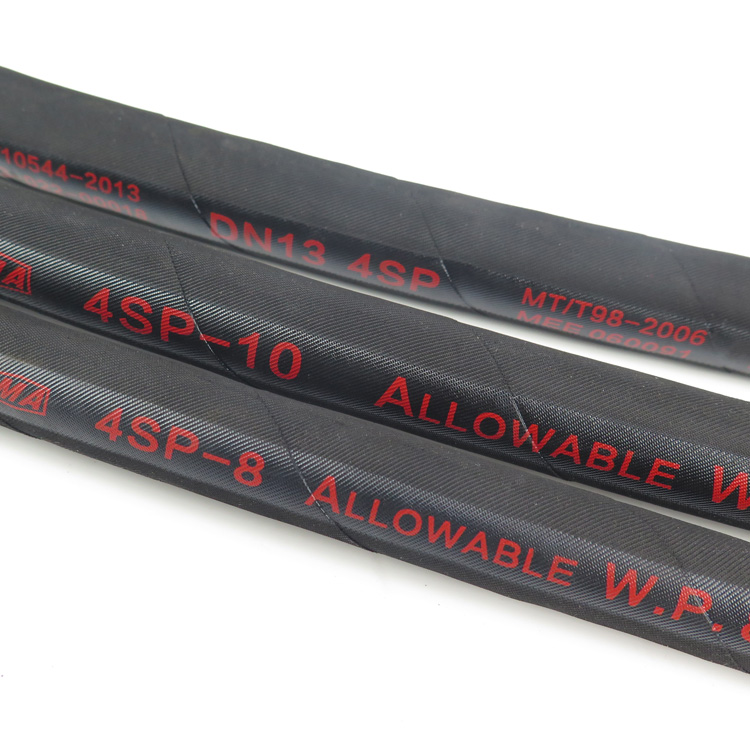

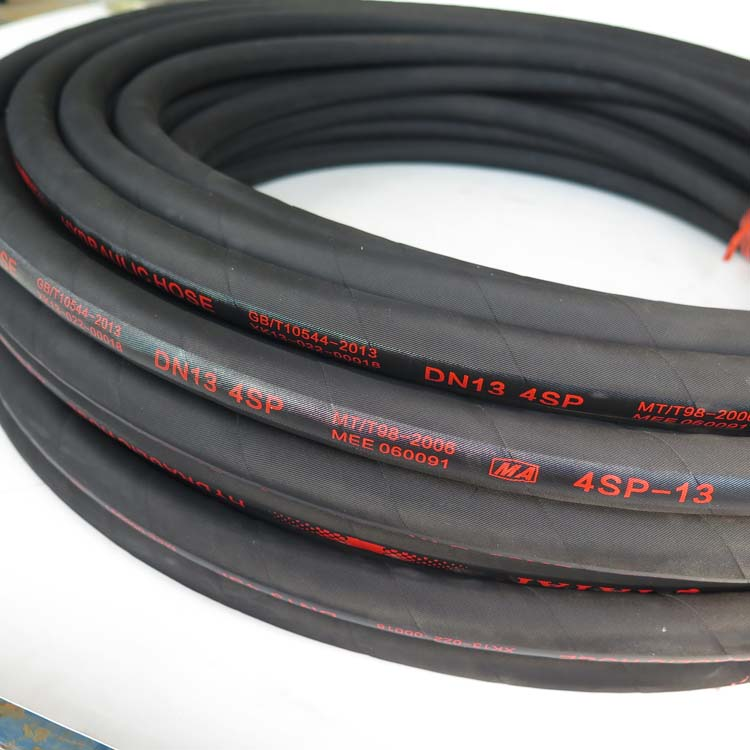

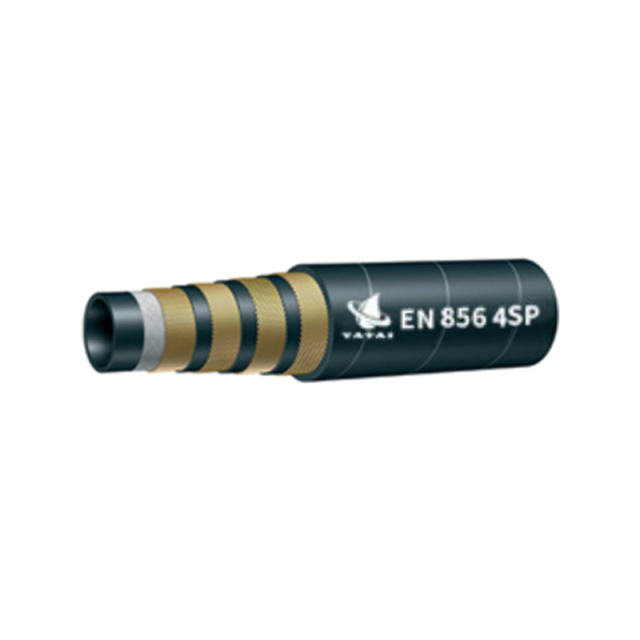

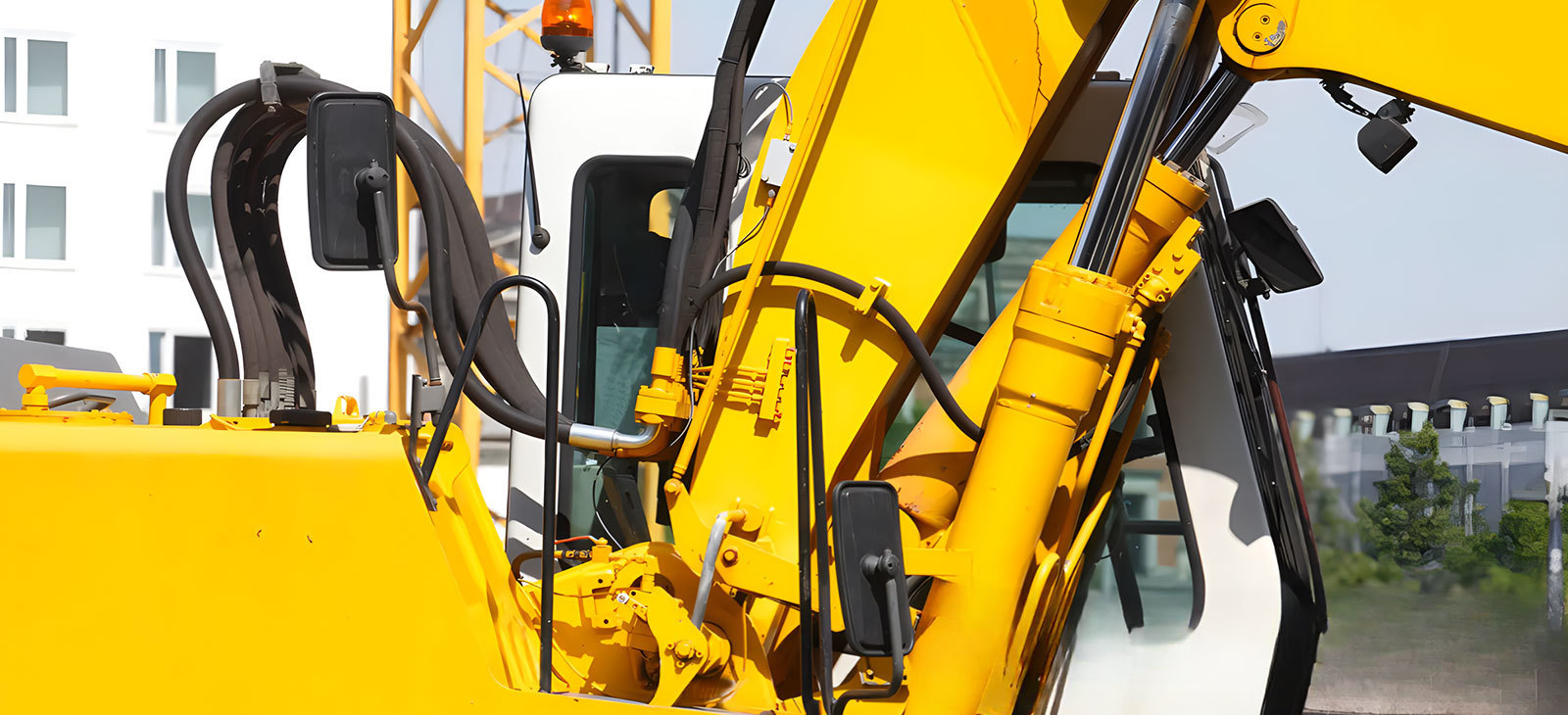

Steel wire wound hydraulic hose, specially designed for petroleum-based hydraulic oil, has excellent applicability. The hose adopts a high-strength steel wire winding structure to provide excellent pressure and wear resistance, ensuring stable operation under high-pressure working environment. The outer layer is made of high-quality rubber material, which has good tear resistance and wear resistance and prolongs the service life. At the same time, the hose has good flexibility and anti-twist, easy to operate, not easy to knot. It is suitable for various hydraulic systems, such as engineering machinery, mining equipment and other fields to ensure the safe and efficient operation of the hydraulic system. In short, steel wire wound hydraulic hose has become an ideal choice in the field of petroleum-based hydraulic oil due to its excellent performance and wide applicability.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-4	1/4"	6.4	17.3	485	7030	1940	18000	125	50	0.59
-6	3/8"	9.7	21.5	450	6520	1800	26000	125	50	0.76
-8	1/2"	12.7	24.5	420	6090	1680	24000	175	50	0.98
-10	5/8"	16.0	27.5	380	5510	1520	22000	200	50	1.23
-12	3/4"	19.1	32.0	380	5510	1520	22000	240	40	1.35
-16	1"	25.4	39.0	320	4640	1280	18500	340	40	2.30
-20	1.1/4"	31.8	46.0	210	3040	840	12200	460	40	2.83
-24	1.1/2"	38.1	53.0	185	2680	740	10500	560	40	3.20
-32	2"	50.8	68.0	175	2530	700	10000	660	40	4.50

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
