Used for oil inlet and oil return pipeline of automobile automatic transmission system; Temperature Range: -40°C ~+160°C

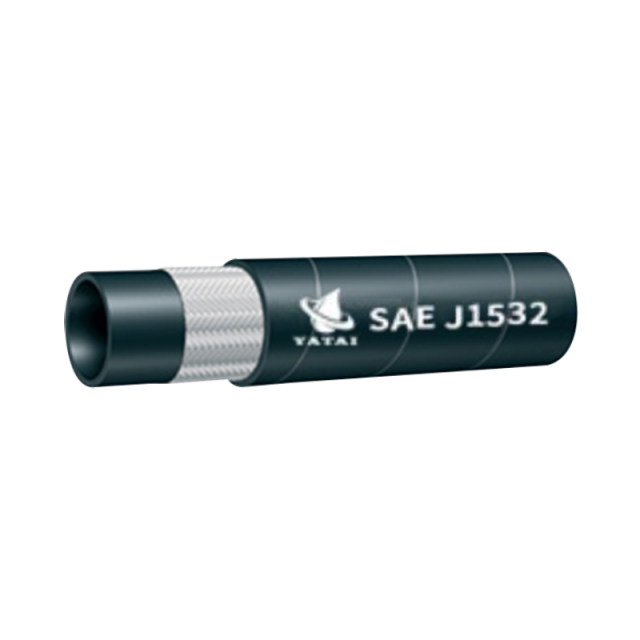

Transmission cooling pipes play a key role in the automotive automatic transmission system. Its main function is to ensure the circulation of transmission oil, covering the important task of oil inlet and return lines. The cooling tube is well-designed and can work in extreme temperature environments, ranging from minus 40 degrees Celsius to plus 160 degrees Celsius, ensuring the normal operation of the automobile gearbox under various climatic conditions.

This cooling pipe is made of a specially selected material with excellent high and low temperature resistance, ensuring efficient heat dissipation at high temperatures and flexible operation at low temperatures. Its compact structure and easy installation can effectively help the gearbox to dissipate heat and maintain its best working condition, thereby prolonging the service life of the gearbox and improving the overall performance of the car. At the same time, the length of the cooling tube can be customized according to actual needs to meet the precise needs of different models.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	M/roll	kg/m
-5	5/16"	7.9	14.6	20	300	80	1200	75	50-100	0.16
-6	11/32"	8.7	15.6	20	300	80	1200	75	50-100	0.18
-6	3/8"	9.7	16.5	20	300	80	1200	75	50-100	0.21
-8	1/2"	12.7	20.4	20	300	80	1200	100	50-100	0.27

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
