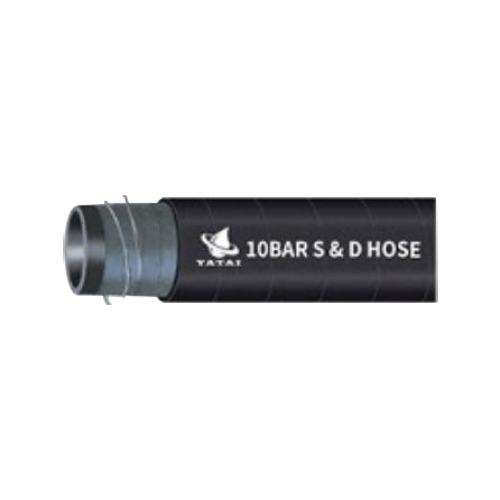

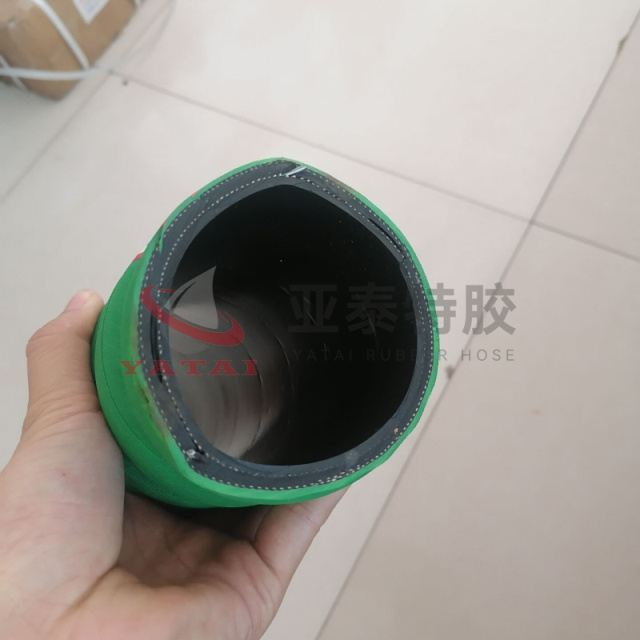

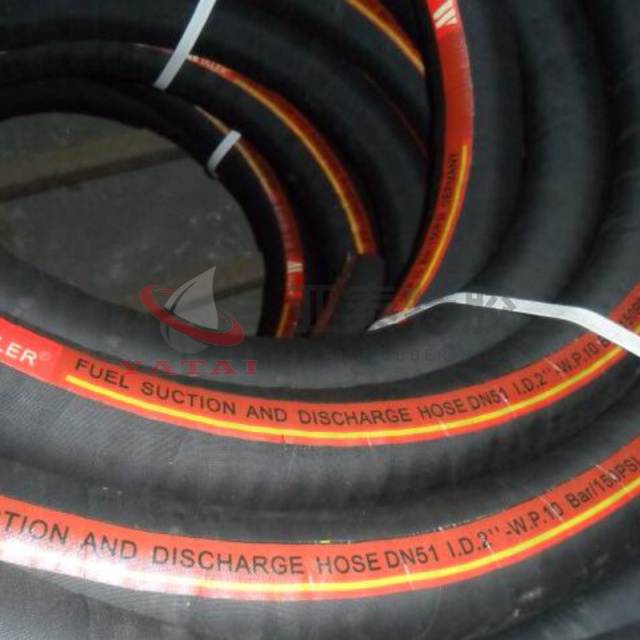

Suitable for industrial suction and discharge of petroleum-based hydraulic oil; Temperature Range: -30°C ~+100°C

Suction and drainage pipe is an important industrial equipment component, which is widely used in machinery, automobile, petrochemical and other fields. Its main function is responsible for conveying and discharging oil to ensure the normal operation of the equipment. The tubing length is usually 200mm, and other specifications are also available. Its material is usually high-quality steel pipe or stainless steel, which has good wear resistance, corrosion resistance and long service life. Suction pipe internal precision machining, smooth without roughness, can effectively reduce the fluid resistance, improve transmission efficiency. At the same time, the oil pipe has compact structure and convenient installation, which effectively improves the safety and reliability of the equipment. In short, the suction and discharge pipe plays an important role in industrial production and is an indispensable part of many equipment.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-12	3/4"	19.1	30.8	10	150	30	450	114	60	0.76
-16	1"	25.4	36.8	10	150	30	450	150	60	0.94
-20	1.1/4"	31.8	44.8	10	150	30	450	192	60	1.25
-24	1.1/2"	38.1	51.4	10	150	30	450	228	60	1.56
-29	1.3/4"	45.0	58.4	10	150	30	450	270	60	1.80
-32	2"	50.8	64.4	10	150	30	450	306	60	2.01
-40	2.1/2"	64	78.4	10	150	30	450	384	60	2.61
-48	3"	76	90.8	10	150	30	450	456	60	3.16
-56	3.1/2"	89	106.2	10	150	30	450	534	60	4.56
-64	4"	102	119.2	10	150	30	450	612	60	5.16
-82	5"	127	146.2	10	150	30	450	762	60	6.92
-96	6"	152	171.6	10	150	30	450	912	60	8.36
-128	8"	203	224.8	10	150	30	450	1218	60	12.71
-164	10"	254	280.8	10	150	30	450	1524	10	20.79
-192	12"	304	334.2	10	150	30	450	1824	10	29.14

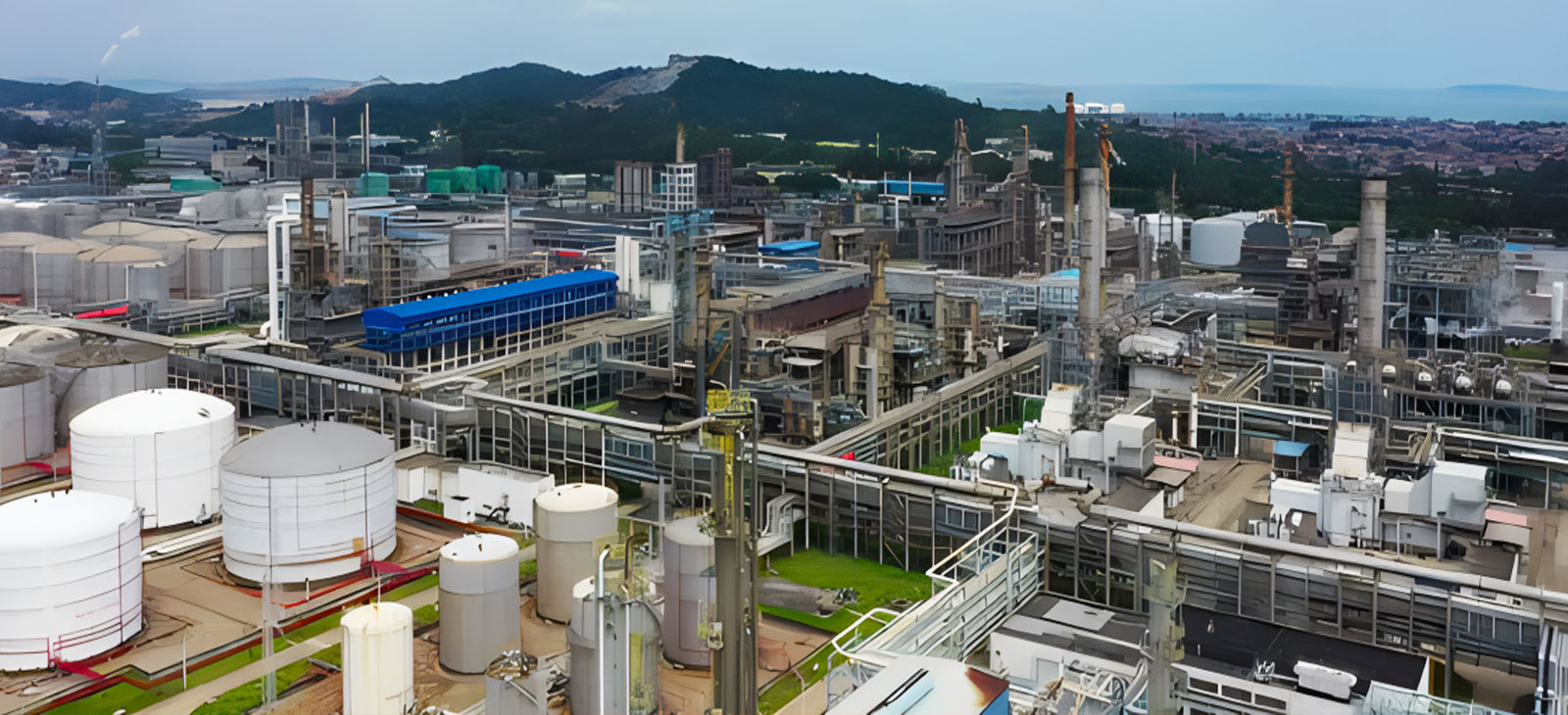

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
