Suitable for fueling equipment to transport aviation kerosene,gasoline, diesel and other mineral oils; Temperature Range: -40°C ~+100°C

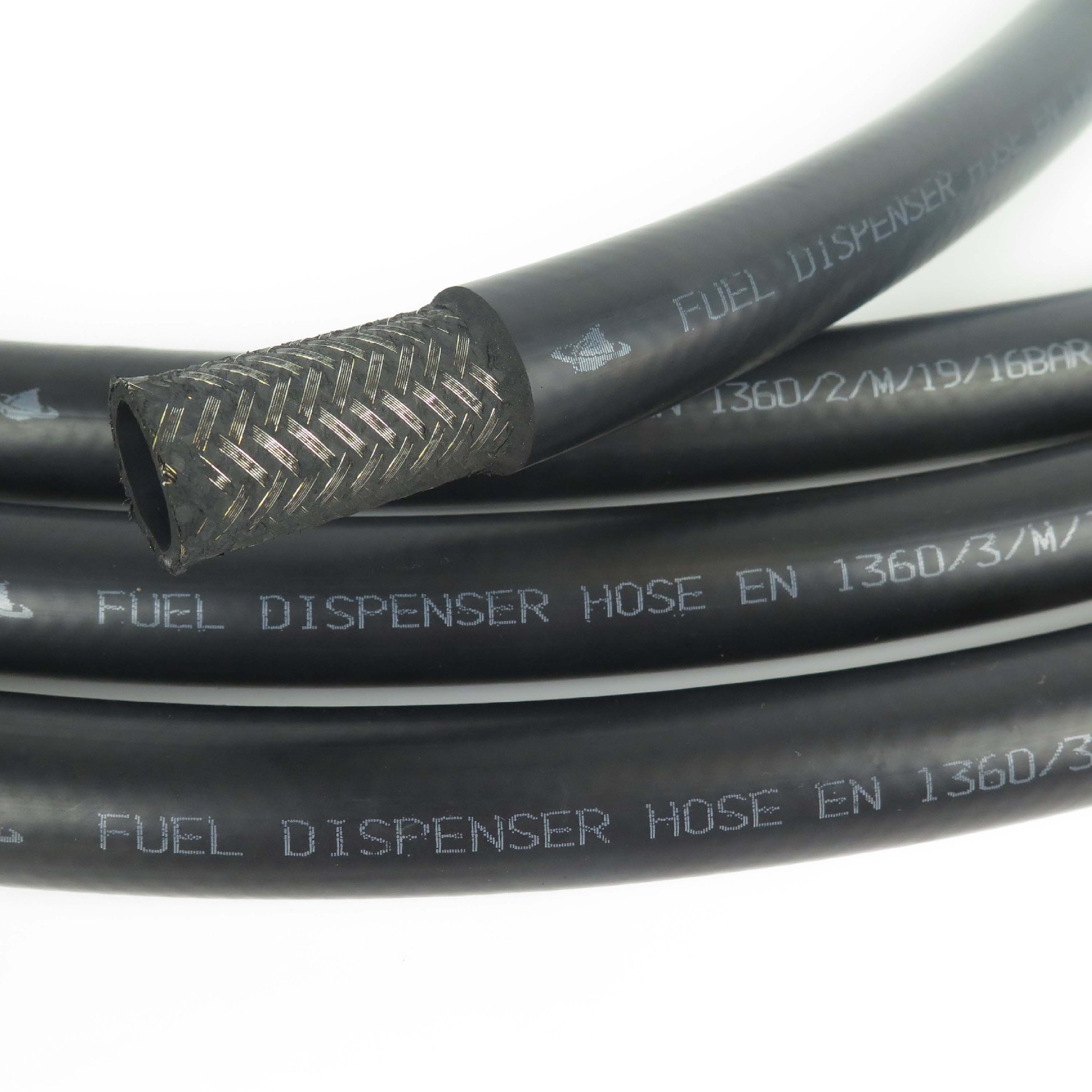

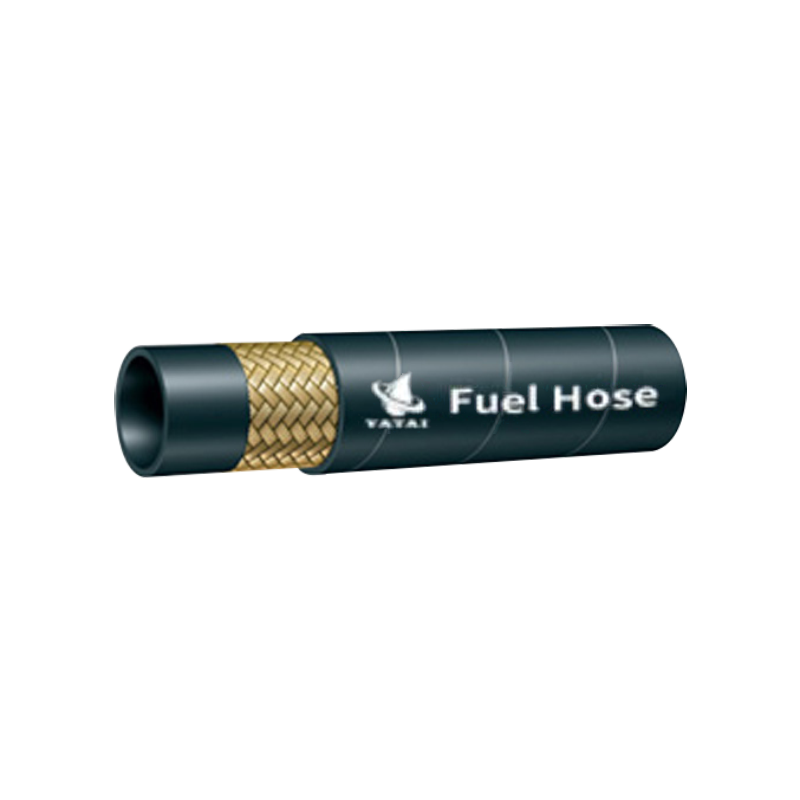

Steel wire braided diesel gasoline pipe is an efficient and reliable pipeline, suitable for refueling equipment in aviation kerosene, gasoline, diesel and other types of mineral oil transportation. The tubing adopts a high-quality steel wire braided structure, which has excellent pressure resistance and wear resistance, and can operate stably in harsh working environments. It has a wide temperature range and can be used in environments from -40°C to 100°C, making it suitable for work in a variety of climatic conditions. In addition, the oil pipe is easy to install and easy to maintain, which can effectively improve work efficiency and reduce operating costs. Whether it is a gas station or an industrial production site, steel wire braided diesel gasoline pipe is an ideal transportation choice to ensure the safety and stability of oil transportation. In short, the tubing is an indispensable and important component in refueling equipment and industrial production.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-18	1.1/8"	28.6	40.3	90	1350	360	5220	400	40	1.10
-20	1.1/4"	31.8	42.5	62	900	248	3600	420	40	1.15
-22	1.3/8"	34.9	47.0	50	720	200	2880	500	40	1.27
-24	1.1/2"	38.1	48.5	48	700	192	2785	550	40	1.40
-29	1.13/16"	46.0	57.2	45	675	180	2610	600	40	1.76
-32	2"	50.8	62.0	40	580	180	2320	630	40	1.80

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
