Diesel Gasoline Hose

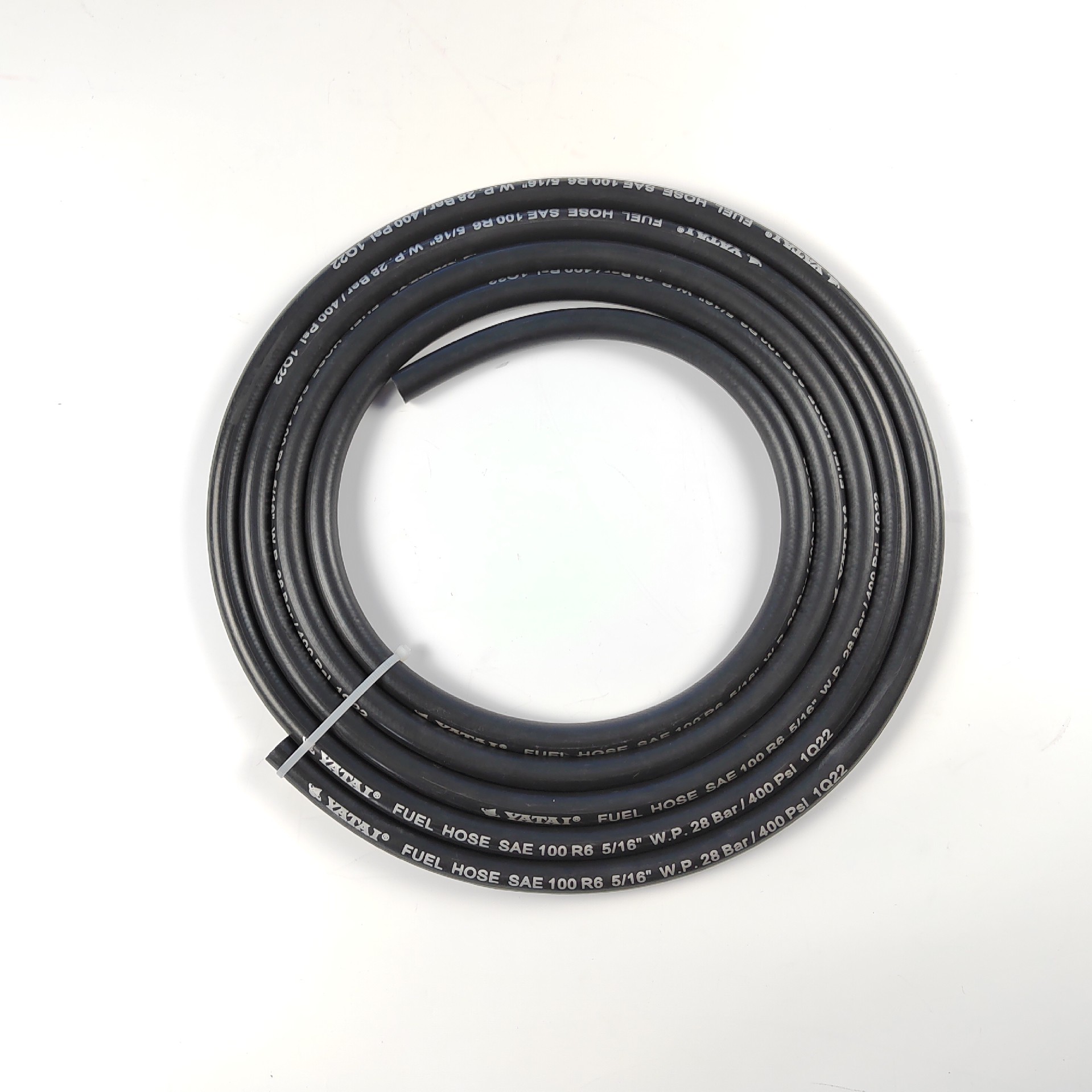

SAE J30R6 Diesel Gasoline Hose
Tube： NBR
Reinforcement： One layer textile braid
Cover： Weather and oil resistant CR
Standards： SAE J30 R6
OEM： √
Product use：
Detail description：
Diesel gasoline pipe is a kind of pipeline used to transport diesel or gasoline, which is widely used in automobile, machinery and other fields. This kind of tubing is usually made of oil-resistant, pressure-resistant, and wear-resistant materials to ensure its performance and safety. Diesel gasoline pipe has excellent sealing and aging resistance, which can effectively prevent fuel leakage and external impurities from entering. Its compact structure and convenient installation can meet the fuel delivery needs of different models. In addition, the design of the diesel gasoline pipe is reasonable and the flow resistance is small, which helps to improve fuel efficiency. In general, diesel and gasoline pipes are an indispensable part of automobiles and machinery, and are essential to ensure the normal operation and safety of vehicles.
 |  |  |  |  |  |  | ||||
| Specifications | Outer diameter | Working pressure | Burst pressure | Bending radius | Length | Weight | ||||
| dash | inch | mm | mm | Bar | psi | Bar | psi | mm | M/roll | kg/m |
| -2 | 5/32" | 4 | 9.1 | 35 | 500 | 140 | 2000 | 40 | 50-100 | 0.12 |
| -3 | 3/16" | 4.8 | 10.3 | 35 | 500 | 140 | 2000 | 40 | 50-100 | 0.15 |
| -4 | 1/4" | 6.4 | 13 | 28 | 400 | 112 | 1600 | 45 | 50-100 | 0.16 |
| -5 | 5/16" | 7.9 | 14.6 | 28 | 400 | 112 | 1600 | 65 | 50-100 | 0.19 |
| -6 | 3/8" | 9.7 | 16.5 | 28 | 400 | 112 | 1600 | 80 | 50-100 | 0.24 |
| -8 | 1/2" | 12.7 | 20.4 | 28 | 400 | 112 | 1600 | 100 | 50-100 | 0.32 |
| -10 | 5/8" | 16.0 | 23.6 | 24 | 350 | 96 | 1440 | 160 | 50 | 0.39 |
| -12 | 3/4" | 19.1 | 27.6 | 21 | 305 | 84 | 1218 | 190 | 50 | 0.52 |
| -14 | 7/8" | 22.0 | 31.0 | 20 | 300 | 80 | 1200 | 220 | 50 | 0.60 |
| -16 | 1" | 25.4 | 34.5 | 17.5 | 250 | 75 | 1000 | 250 | 50 | 0.66 |
| -20 | 1.1/4" | 31.8 | 42.5 | 15 | 215 | 60 | 860 | 320 | 40 | 1.05 |
| -24 | 1.1/2" | 38.1 | 48.5 | 12 | 175 | 48 | 750 | 420 | 40 | 1.25 |
| -28 | 1.3/4" | 45.0 | 55.0 | 10 | 145 | 40 | 580 | 500 | 40 | 1.45 |
| -32 | 2" | 50.8 | 62.0 | 10 | 145 | 40 | 580 | 630 | 40 | 1.65 |
| -38 | 2.3/8" | 60 | 70.0 | 10 | 145 | 40 | 580 | 700 | 20 | 1.82 |

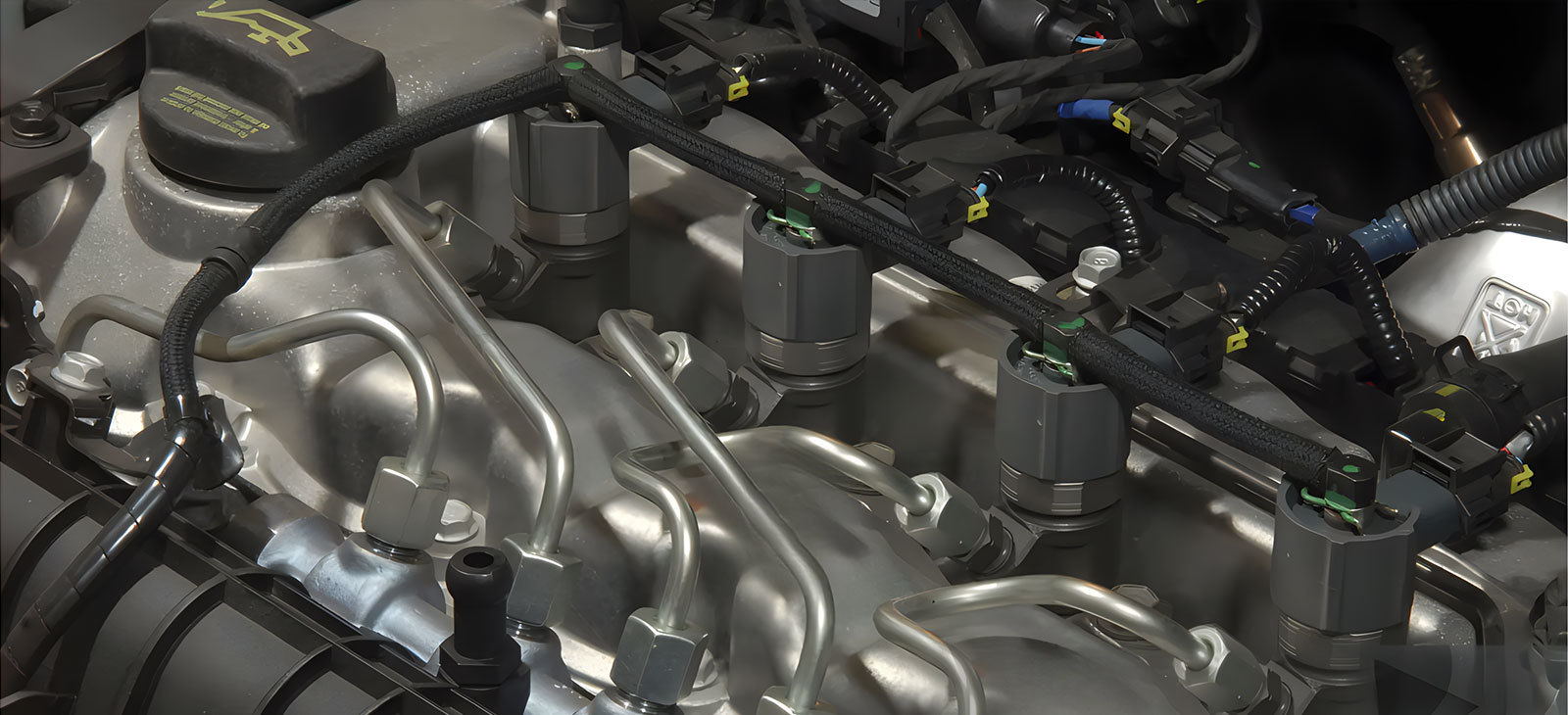

Industry application：
The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
