Sed for medium pressure, high pressure cleaning,municipal pipeline dredging vehicles, pipeline dredging machines; Temperature Range: -40°C ~+100°C; Appearance: Smooth or wrapped

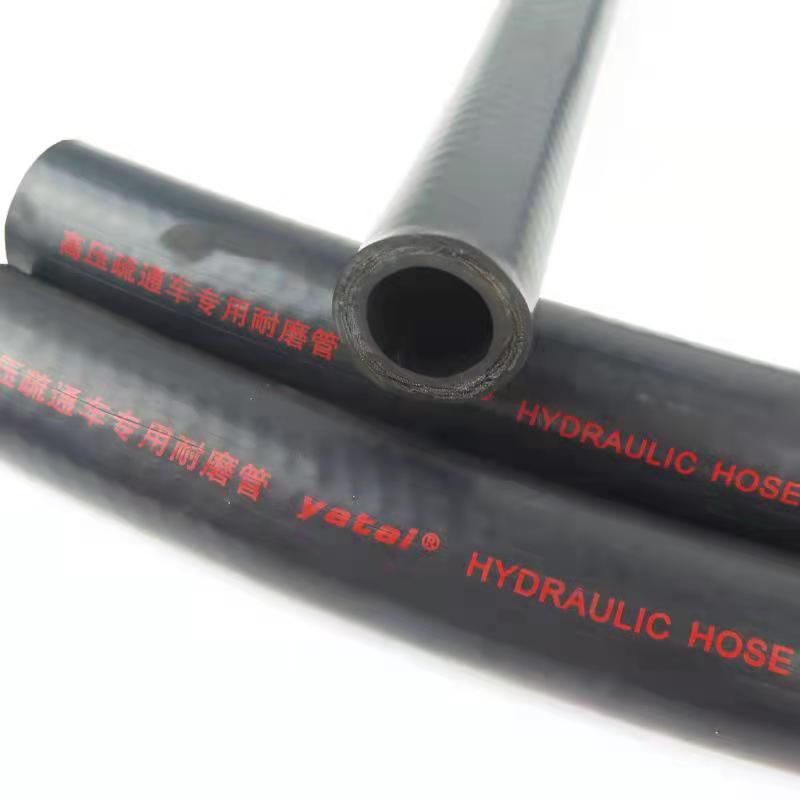

The special wear-resistant pipe for high-pressure dredging vehicles is a high-performance pipeline equipment, which is suitable for medium-pressure and high-pressure cleaning, municipal pipeline dredging vehicles, pipeline dredging machines and other application scenarios. The wear resistant tube can operate in extreme temperature environments, ranging from minus 40 degrees Celsius to minus 100 degrees Celsius, showing excellent durability and stability.

In terms of appearance, this wear-resistant tube can choose smooth or cloth design to meet different use needs and aesthetic requirements. It has superior wear resistance, can resist wear and corrosion in high-pressure environments, and extend service life. In addition, the length and specifications of the pipeline can be customized according to actual needs, which is convenient for installation and use.

In short, the special wear-resistant pipe for high-pressure dredging vehicles is an efficient, safe and reliable pipeline equipment, which provides important technical support and guarantee for municipal pipeline dredging and high-pressure cleaning operations.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-10	5/8"	16.0	25.5	250	3600	1000	14400	205	50	0.80
-12	3/4"	19.1	29.3	215	3100	860	12400	240	50	0.95
-14	7/8"	22.2	32.0	200	3000	800	12000	280	50	1.18
-16	1"	25.4	35.5	165	2400	640	9600	300	50	1.32

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
