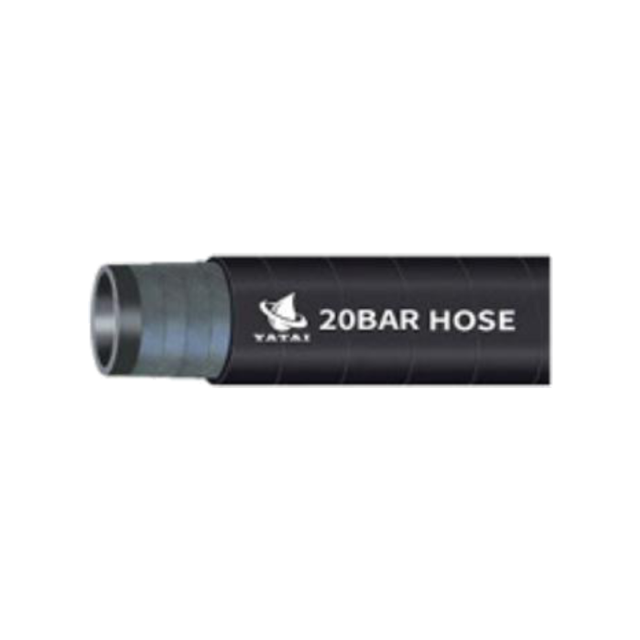

20barMaterial Handling Hose
20barMaterial Handling Hose
Tube： NR,BR,SBR
Reinforcement： High tensile textile cord
Cover： Weather and wear resistant NR, SBR
Standards： 20Bar
OEM： √
Product use：
Detail description：
Material pipe is an important conveying equipment, widely used in various industrial fields. Its original intention is to meet the needs of efficient and safe material transportation. In agriculture, construction and chemical industries, material management plays a pivotal role.
This pipe is particularly suitable for conveying grain, dry cement, gravel, lime paste and slurry and other materials. Its strong conveying capacity and stable performance ensure the quality and efficiency of materials in the conveying process. The material tube is made of wear-resistant and corrosion-resistant materials to ensure long-term stability and durability. In addition, it is easy to install and low in maintenance cost, which saves a lot of manpower and material costs for enterprises. In general, material management is an indispensable part of modern industry, which provides strong support for the production and development of enterprises.
 |  |  |  |  |  |  | ||||
| Specifications | Outer diameter | Working pressure | Burst pressure | Bending radius | Length | Weight | ||||
| dash | inch | mm | mm | Bar | psi | Bar | psi | mm | m/roll | kg/m |
| -16 | 1" | 25.4 | 36.8 | 20 | 300 | 60 | 900 | 250 | 60 | 0.75 |
| -20 | 1.1/4" | 31.8 | 45.8 | 20 | 300 | 60 | 900 | 320 | 60 | 1.18 |
| -24 | 1.1/2" | 38.1 | 53.8 | 20 | 300 | 60 | 900 | 380 | 60 | 1.58 |
| -32 | 2" | 50.8 | 66.8 | 20 | 300 | 60 | 900 | 510 | 60 | 2.03 |
| -40 | 2.1/2" | 64 | 80.6 | 20 | 300 | 60 | 900 | 640 | 60 | 2.47 |
| -48 | 3" | 76 | 97.4 | 20 | 300 | 60 | 900 | 760 | 60 | 3.83 |
| -56 | 3.1/2" | 89 | 110.4 | 20 | 300 | 60 | 900 | 890 | 60 | 4.40 |
| -64 | 4" | 102 | 123.4 | 20 | 300 | 60 | 900 | 1020 | 60 | 4.97 |
| -82 | 5" | 127 | 149.6 | 20 | 300 | 60 | 900 | 1270 | 60 | 6.59 |
| -96 | 6" | 152 | 176.6 | 20 | 300 | 60 | 900 | 1520 | 60 | 8.50 |
Industry application：
The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
