For tight spaces, use petroleum-based hydraulic fluids; Temperature Range: -40°C~+100°C; Appearance: Smooth or wrapped, Color: Black or multiple colors

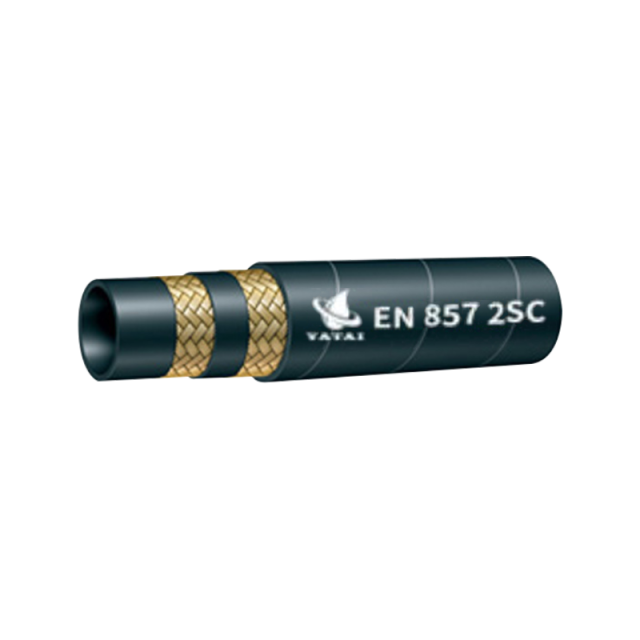

Steel wire braided hydraulic hose (EN 857 2SC) is a highly efficient hydraulic transmission equipment suitable for small spaces. Its unique design enables it to operate stably in extreme temperature environments (-40°C to 100°C), and maintain excellent performance whether it is in cold winter or hot summer. This hose uses petroleum-based hydraulic oil to ensure the accuracy and efficiency of transmission.

In terms of appearance, the hydraulic hose has two choices of smooth surface and cloth pattern, which not only meets the aesthetic requirements, but also facilitates users to choose the most suitable product in different working environments. In terms of color, we provide black and a variety of color options to meet the individual needs of customers. In addition, our steel wire braided hydraulic hoses are of high quality, durable and reliable, making them ideal for your hydraulic work in tight spaces. The length can be customized according to customer needs to meet different work needs.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-4	1/4"	6.4	13.4	400	5800	1600	23200	50	50-100	0.27
-5	5/16"	7.9	15.0	350	5070	1400	20280	55	50-100	0.33
-6	3/8"	9.7	17.2	330	4780	1320	19120	65	50-100	0.40
-8	1/2"	12.7	20.4	275	3980	1100	15920	80	50-100	0.50
-10	5/8"	16.0	23.9	250	3620	1000	14480	90	50-100	0.60
-12	3/4"	19.1	27.7	215	3110	860	12440	120	50	0.80
-16	1"	25.4	35.4	165	2390	660	9560	160	50	1.14
-20	1.1/4"	31.8	43.6	125	1810	500	7240	250	40	1.61
-24	1.1/2"	38.1	50.7	100	1450	400	5800	300	40	1.94
-32	2"	50.8	63.4	90	1300	360	5200	400	40	2.49

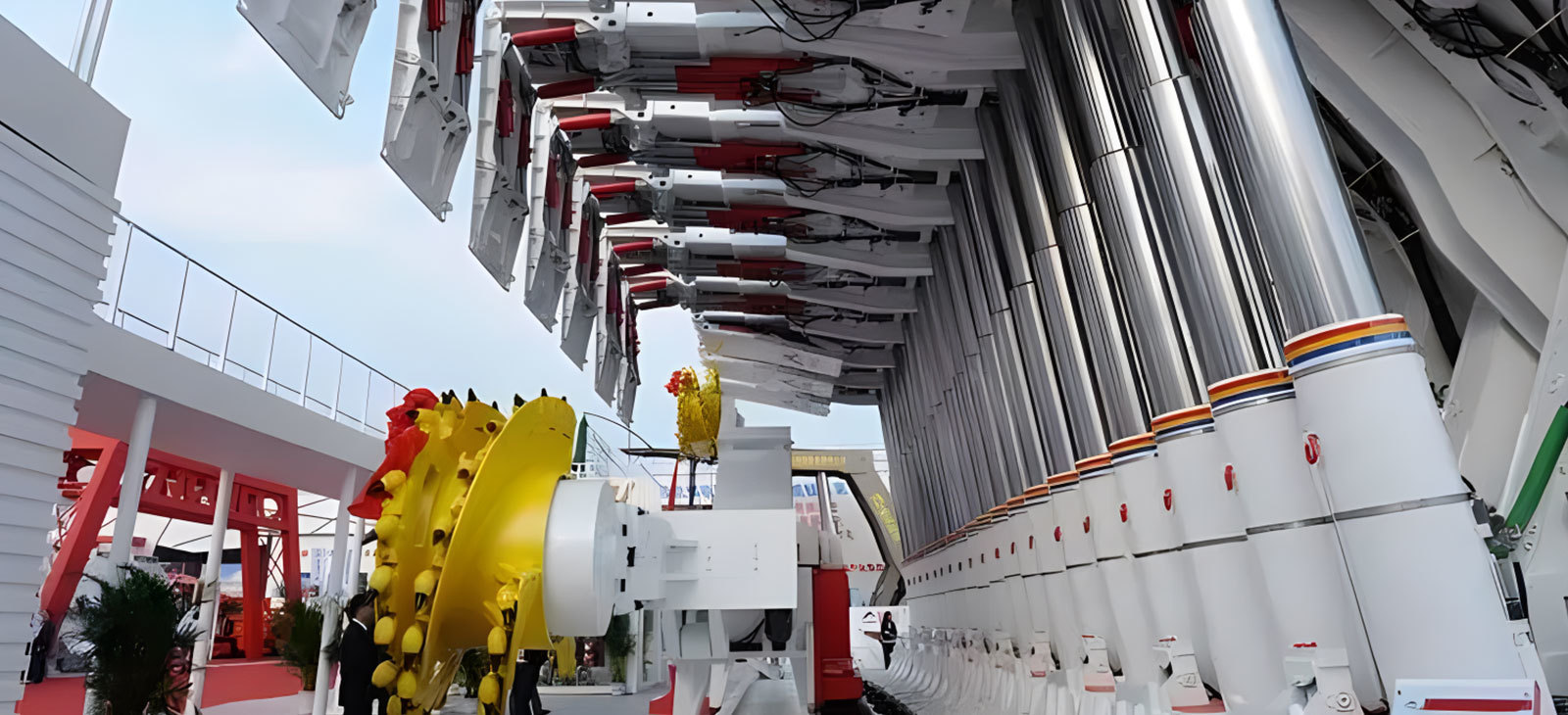

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
