Suitable for fueling equipment to transport aviation kerosene, ethanol, gasoline, diesel; Temperature Range: -40°C ~+100°C; Appearance: Smooth or wrapped; Color: Black or multiple colors

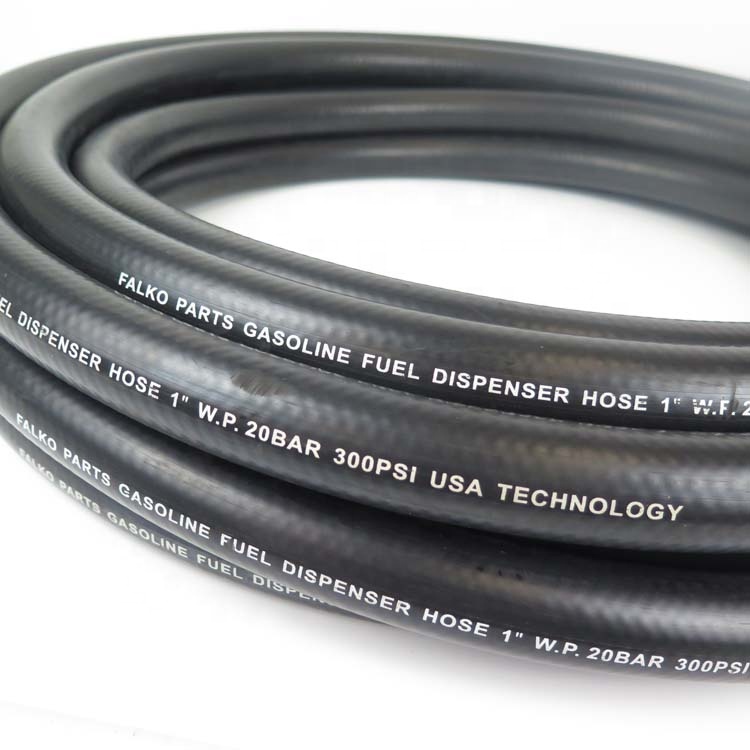

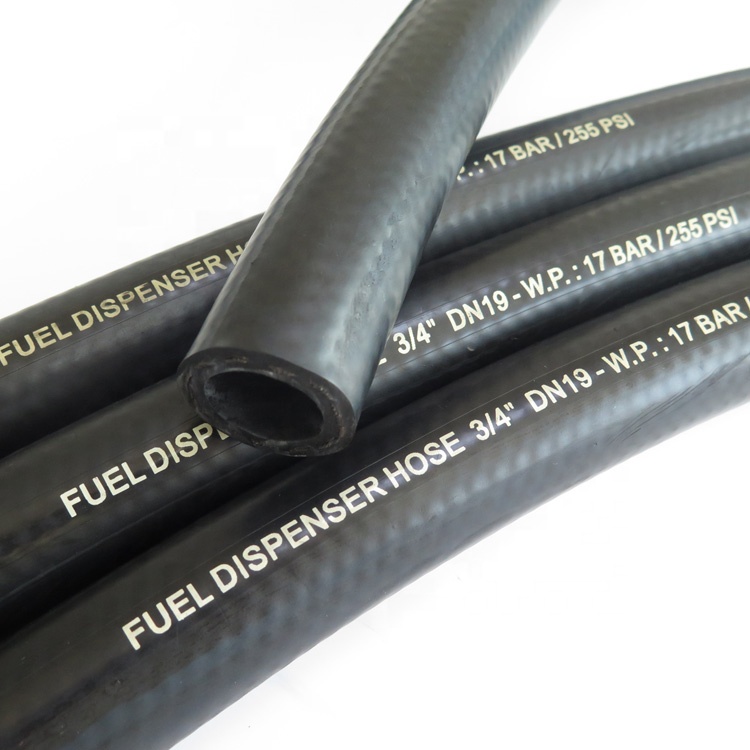

The refueling machine pipe is a transportation pipeline specially designed for refueling equipment, which is suitable for aviation kerosene, ethanol, gasoline, diesel and other fuels. Its excellent performance can maintain excellent stability in the temperature range of -40°C to 100°C, ensuring normal operation in various extreme environments. In terms of appearance, the refueling machine pipe provides two choices of smooth surface and cloth pattern, which not only meets the needs of modern simplicity, but also adapts to different usage scenarios and personalized needs. In terms of color, in addition to the classic black, it also provides color options, which is more beautiful and generous. Its length can be customized according to actual needs, which is convenient for installation and use. In short, this refueling machine pipe has become one of the most popular refueling equipment accessories on the market due to its high quality, reliability and flexibility.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-12	3/4"	19.1	28.5	16	230	48	690	100	50-100	0.65
-16	1"	25.4	35.0	16	230	48	690	150	50-100	0.93

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
