Vehicles suitable for power steering, where pressure is transmitted in the power steering; Temperature Range: -40°C ~+120°C

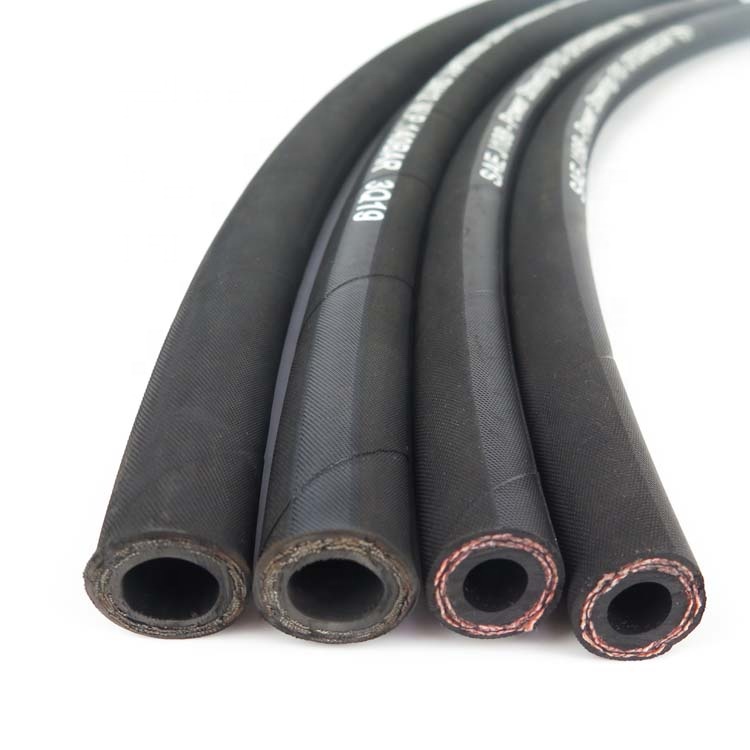

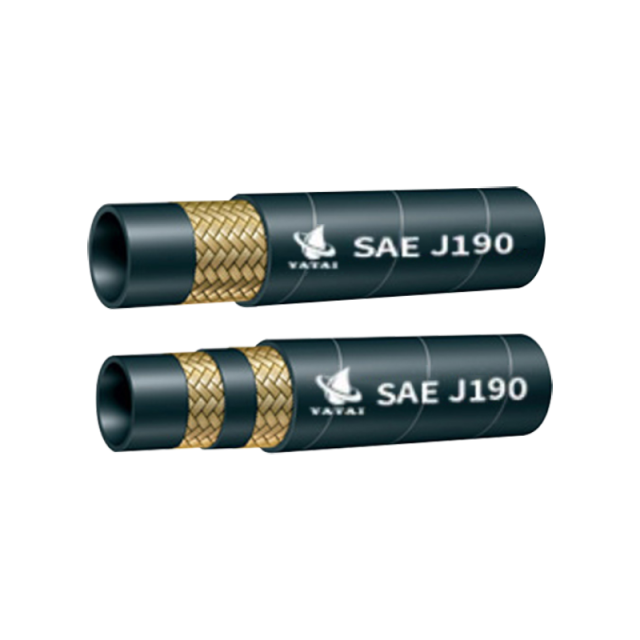

Steel wire braided power steering tube is a high-performance auto part used in vehicle steering systems. It is woven with high-strength steel wire as raw material, with high pressure bearing capacity and good wear resistance. The power steering tube has excellent fatigue resistance to ensure stability and reliability under long-term use. Its compact structure, easy installation, to meet the needs of a variety of models. In addition, its unique design and high-quality materials ensure its torsion resistance and stretch resistance, which improves the handling and safety of the vehicle. The overall length can be customized according to actual needs and is widely used in various automotive fields.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	M/roll	kg/m
-5	5/16"	7.9	16.5	350	5000	1440	20000	115	50-100	0.40
-6	3/8"	9.7	18.9	330	4800	1320	19200	125	50-100	0.51
-8	1/2"	12.7	22.0	275	4000	1100	16000	180	50-100	0.62
-6	3/8"	9.7	17.4	180	2600	720	10400	125	50-100	0.34

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
