Suitable for tight spaces,use petroleum-based hydraulic fluids; Temperature Range: -30°C ~+135°C; Color: Black or blue

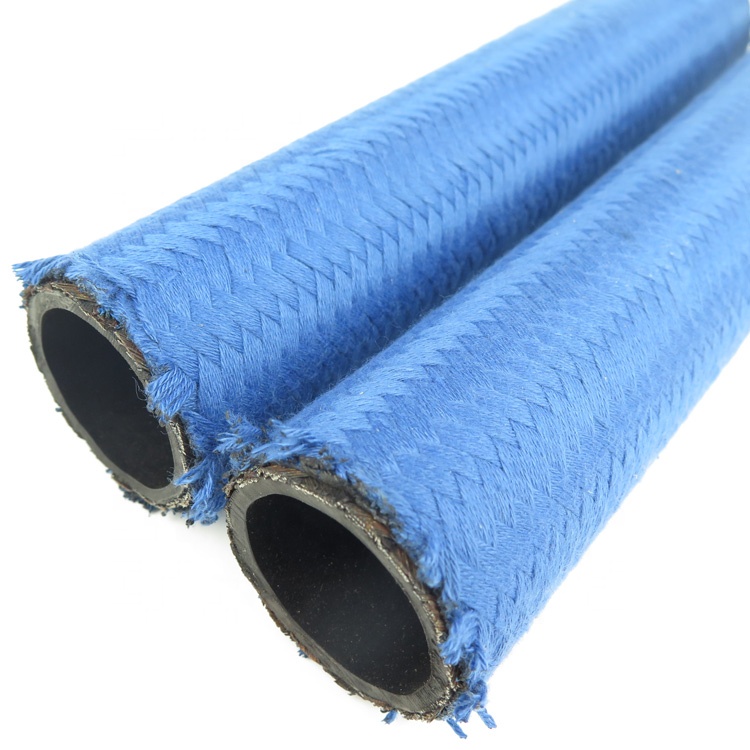

In view of the application requirements of narrow space, we have introduced the outer covered cotton thread air compressor tubing. This tubing is covered with high-quality cotton thread to ensure excellent durability and flexibility in extreme environments. It is suitable for use in environments where petroleum-based hydraulic fluids are used, ensuring smooth hydraulic operation. This tubing has a wide range of temperature adaptation and can operate stably from -30°C to 135°C to meet the needs of a variety of complex environments. At the same time, the tubing color can be selected in black or blue to meet the individual needs of different customers. Our tubing is state-of-the-art in design and well-manufactured to provide the highest quality service and reliability. No matter in any small space, our tubing can exert excellent performance to ensure that your hydraulic system operates efficiently and safely. Choose our outer covered cotton air compressor tubing to make your hydraulic equipment work more smoothly.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	13.0	210	3040	840	12180	75	50-100	0.22
-4	1/4"	6.4	14.6	210	3040	840	12180	85	50-100	0.26
-5	5/16"	7.9	17.0	157	2270	628	9130	100	50-100	0.31
-6	3/8"	9.7	19.3	140	2030	560	8120	115	50-100	0.36
-8	1/2"	12.7	23.3	122	1760	488	7100	140	50-100	0.49
-10	5/8"	16.0	27.2	105	1520	420	6090	165	50-100	0.65
-12	3/4"	19.1	28.1	100	1500	400	6000	160	50	0.78
-14	7/8"	22.2	31.2	96	1390	385	5580	185	50	0.85
-16	1"	25.4	34.8	87	1260	350	5000	300	50	0.89
-18	1.1/8"	28.6	38.0	70	620	175	2540	230	40	0.80
-20	1.1/4"	31.8	41.2	62	900	250	3600	420	40	1.00
-22	1.3/4"	34.9	44.3	56	510	140	2030	480	40	0.95
-24	1.1/2"	38.1	48.2	50	725	200	2900	500	40	1.20
-29	1.13/16"	46.0	56.1	45	350	96	1420	335	40	1.42
-32	2"	50.8	65.8	40	580	160	2320	560	40	1.65
-38	2.3/8"	60	75.0	20	350	96	1420	610	20	1.90

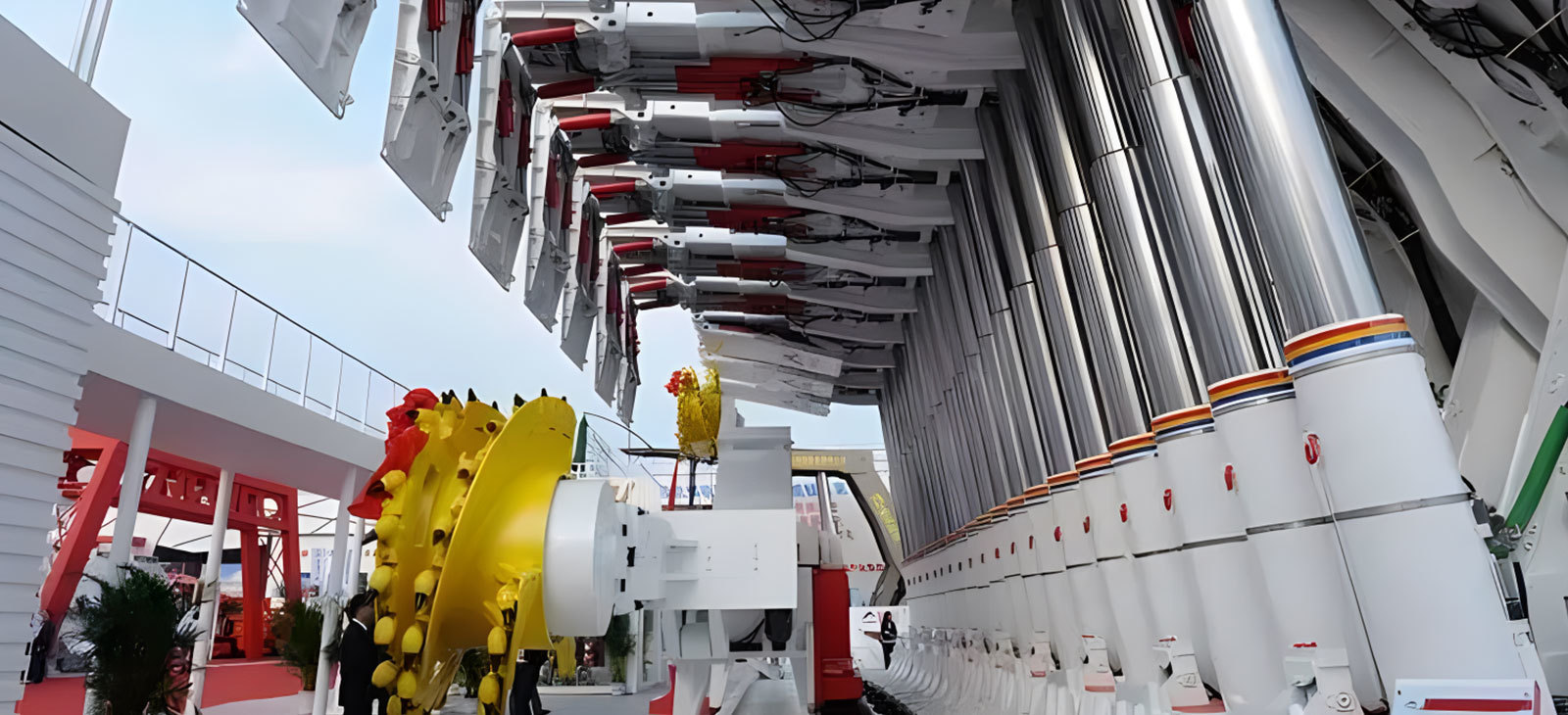

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
