Suitable for ground refueling and suction and discharge of aircraft,petroleum-based fuels with aromatic hydrocarbons not exceeding 50%; Temperature Range: -30°C~+100°C

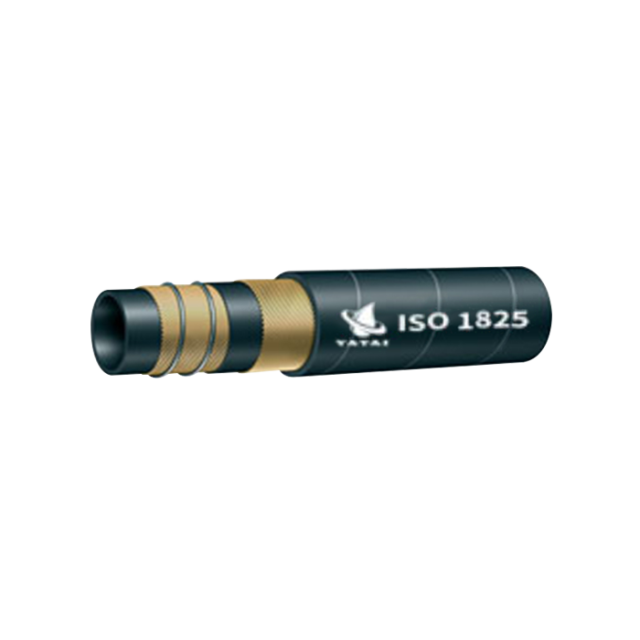

Aircraft refueling pipe is a kind of ground refueling and sucking equipment specially designed for aircraft, which has high adaptability and functional advantages. It has a wide range of applications and can deal with petroleum-based fuels with an aromatic hydrocarbon content of no more than 50% to ensure the quality of the oil during the refueling process. In addition, this fuel filler pipe can operate freely in extreme temperature conditions, ranging from -30°C to +100°C, and can provide stable refueling service for aircraft in cold winter and hot summer. Its sophisticated design, compact structure, small footprint, easy to carry and storage. At the same time, the filler pipe is made of high-strength materials, wear-resistant and corrosion-resistant, ensuring long service life and stable performance. Overall, aircraft refueling tubes are ideal for aircraft ground refueling operations.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-12	3/4"	19.1	30.8	20	300	80	1200	90	60	0.76
-16	1"	25.4	36.8	20	300	80	1200	115	60	0.94
-20	1.1/4"	31.8	47.2	20	300	80	1200	140	60	1.53
-24	1.1/2"	38.1	53.8	20	300	80	1200	180	60	1.88
-32	2"	50.8	66.8	20	300	80	1200	215	60	2.41
-40	2.1/2"	64	81.2	20	300	80	1200	230	60	3.10
-48	3"	76	94.0	20	300	80	1200	280	60	3.82
-56	4"	102	120.8	20	300	80	1200	348	60	5.45

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
