Suitable for conveying phosphate ester hydraulic oil and aviation blue oil in aviation,electric power, metallurgy, etc; Temperature Range: -40°C~135°C

Resistance to phosphate steel wire winding hydraulic hose is a key conveying equipment suitable for a variety of industries, especially in the field of aviation, power and metallurgy. It is specially designed for transporting phosphoric acid hydraulic oil and aviation blue oil, which can operate stably in high pressure environment and ensure the efficiency and safety of fluid transmission.

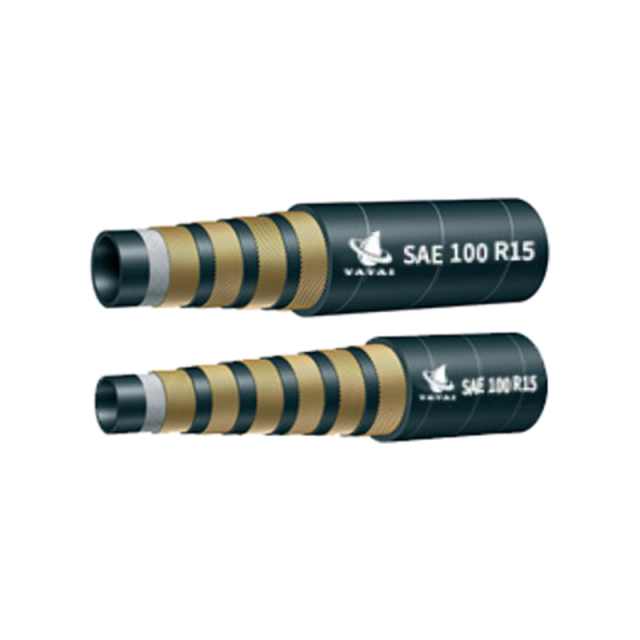

The hydraulic hose adopts high-quality steel wire winding structure, which makes it have excellent pressure resistance and corrosion resistance, and can resist the corrosive effect of phosphate ester hydraulic oil. Its internal structure is carefully designed to ensure the smooth flow of fluid and excellent wear resistance. In addition, the hose has good fatigue resistance and high temperature resistance, and can operate stably for a long time under extreme working conditions.

In the aviation, electric power and metallurgy industries, this hydraulic hose is an ideal choice for phosphate hydraulic oil transportation, and is widely used for its reliable performance and durability. For more details and customized services, please consult professional suppliers or manufacturers. Length can be customized according to demand.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-6	3/8"	9.7	21.5	420	6090	1680	24360	150	50	0.76
-8	1/2"	12.7	24.5	420	6090	1680	24360	200	50	0.98
-12	3/4"	19.1	32.0	420	6090	1680	24360	240	40	1.35
-16	1"	25.4	39.0	420	6090	1680	24360	300	40	2.30
-20	1.1/4"	31.8	50.0	420	6090	1680	24360	420	40	3.60
-24	1.1/2"	38.1	56.0	420	6090	1680	24360	500	40	4.75
-32	2"	50.8	71.5	420	6090	1680	24360	630	40	6.90

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
