Suitable for ultra-low temperature, using petroleum-based hydraulic fluids; Temperature Range: -55°C ~+100°C

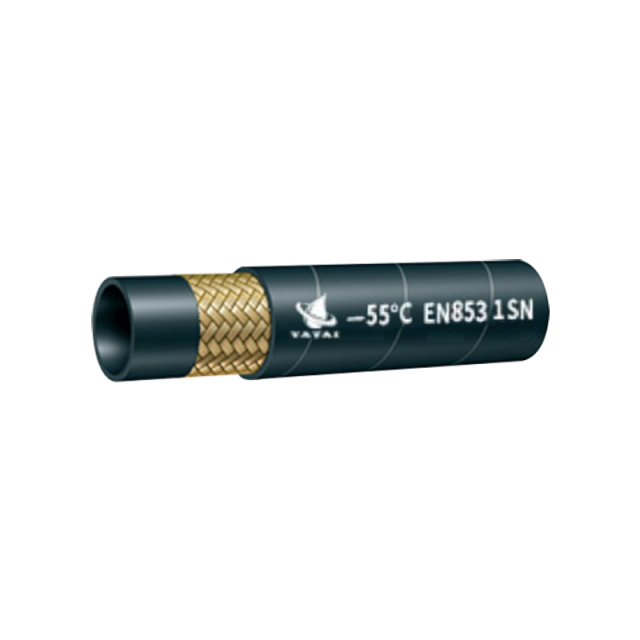

Ultra-low temperature hydraulic hose is a special hose designed for ultra-low temperature environment, suitable for petroleum-based hydraulic oil with a temperature range of -55°C to 100°C. In extreme cold conditions, this hose shows excellent performance and ensures stable operation of the hydraulic system. Its special manufacturing process and material selection, so that the hose at low temperatures can still maintain the characteristics of soft, crack resistance, wear resistance. In addition, the hose has excellent anti-aging performance and can work in harsh environments for a long time without damage. Its reliability and durability provide strong support for various ultra-low temperature hydraulic systems and ensure the long-term stable operation of the system. Therefore, this ultra-low temperature hydraulic hose is ideal for engineering applications in cold environments.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	12.0	250	3600	1000	14400	90	50-100	0.19
-4	1/4"	6.4	13.2	225	3250	900	13000	100	50-100	0.22
-5	5/16"	7.9	15.2	215	3100	860	12400	115	50-100	0.26
-6	3/8"	9.7	17.4	180	2600	720	10400	125	50-100	0.34
-8	1/2"	12.7	20.5	160	2300	640	9200	180	50-100	0.41
-10	5/8"	16.0	23.7	130	1900	520	7600	205	50-100	0.51
-12	3/4"	19.1	27.7	105	1500	420	6000	240	50	0.60
-16	1"	25.4	33.7	97	1260	388	5040	300	50	0.85
-20	1.1/4"	31.8	42.5	62	900	248	3600	420	40	1.22
-24	1.1/2"	38.1	48.5	50	720	200	2880	500	40	1.41
-32	2"	50.8	62.0	40	580	160	2320	630	40	1.88

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
