Suitable for conveying phosphate ester hydraulic oil and aviation blue oil in aviation, electric power, metallurgy, etc.Temperature Range: -40°C ~+120°C

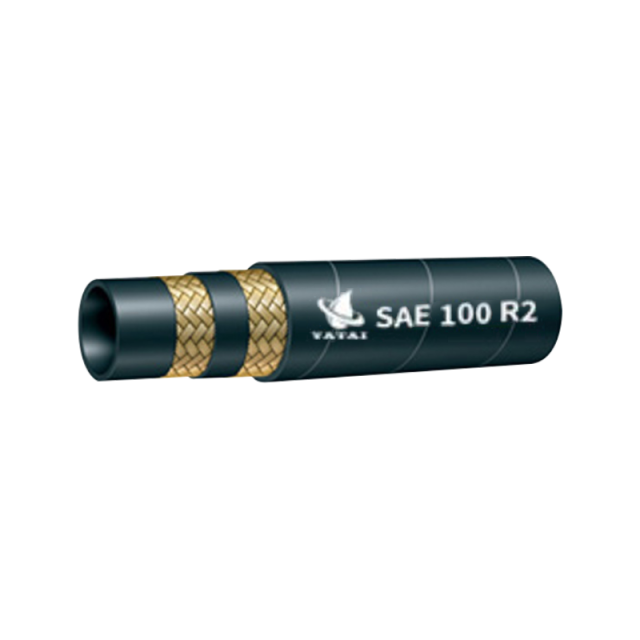

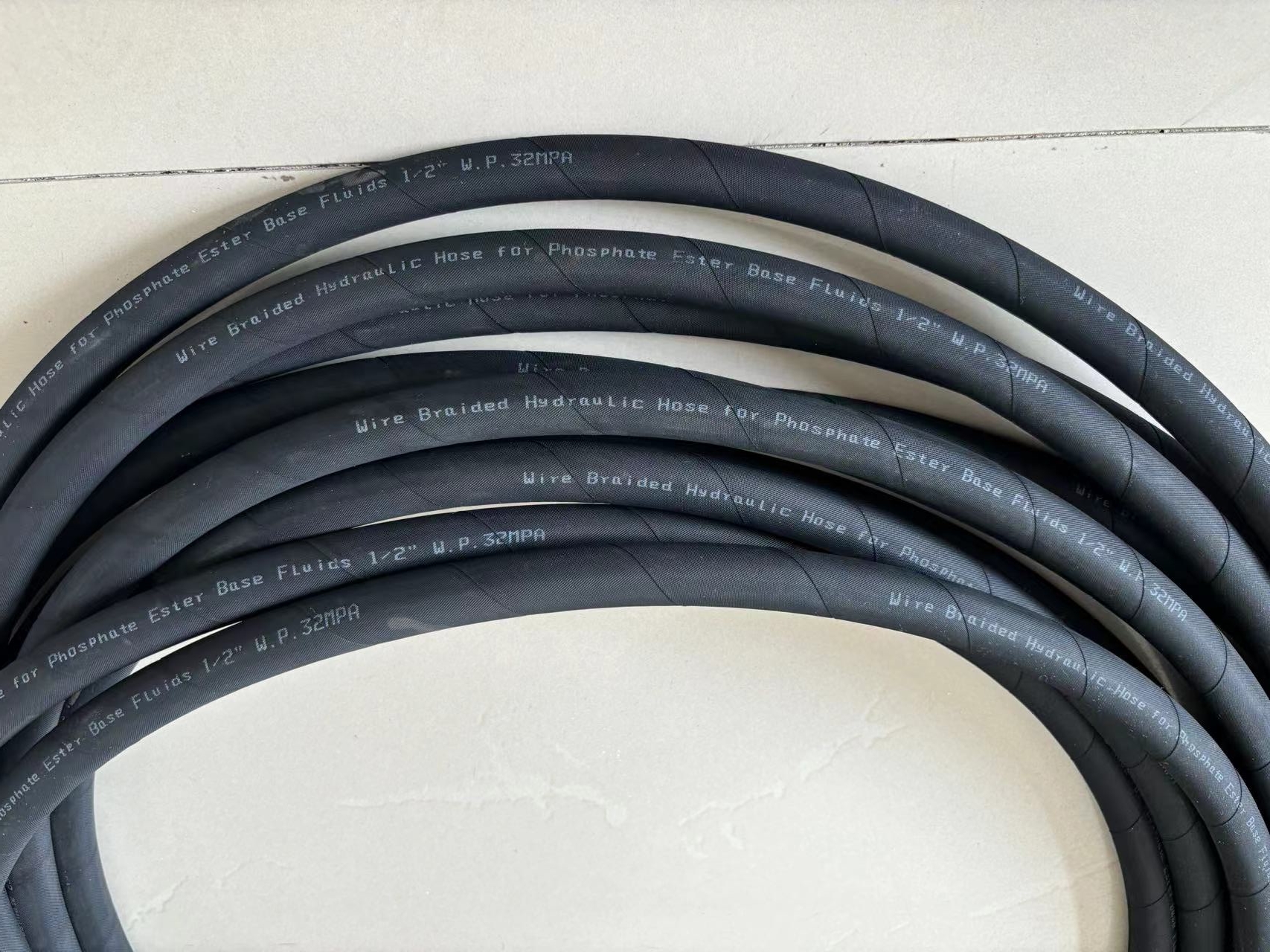

The phosphate-resistant steel wire braided hydraulic tubing is a high-performance pipeline, which is suitable for aviation, electric power, metallurgy and other fields. The oil pipe adopts high-quality steel wire braided structure, which has extremely high pressure resistance and tensile resistance, and can resist the erosion of high-temperature working media such as phosphate hydraulic oil. Its special design allows it to operate in extreme temperatures, ranging from -40°C to 120°C, ensuring the stability and reliability of the pipeline in various environments. In addition, the oil pipe also has excellent anti-wear performance and anti-aging performance, can run stably for a long time, and reduce maintenance costs. Therefore, phosphate-resistant steel wire braided hydraulic tubing is the best choice for transporting phosphate hydraulic oil and aviation blue oil in aviation, electric power, metallurgy and other industries.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	13.3	415	6000	1660	24000	90	50-100	0.32
-4	1/4"	6.4	15.0	400	5800	1600	23200	100	50-100	0.38
-5	5/16"	7.9	16.5	350	5000	1400	20000	115	50-100	0.44
-6	3/8"	9.7	18.9	330	4800	1320	19200	125	50-100	0.54
-8	1/2"	12.7	22.0	275	4000	1100	16000	180	50-100	0.70
-10	5/8"	16.0	25.5	250	3600	1000	14400	205	50-100	0.80
-12	3/4"	19.1	29.3	215	3100	860	12400	240	50	0.95
-14	7/8"	22.2	32.0	190	2740	760	10960	270	50	1.13
-16	1"	25.4	35.5	165	2400	660	9600	300	50	1.32
-18	1.1/8"	28.6	39.9	145	2088	580	8350	360	40	1.63
-20	1.1/4"	31.8	44.3	125	1800	500	7200	420	40	1.95
-24	1.1/2"	38.1	50.3	90	1300	360	5200	500	40	2.20
-29	1.13/16"	46.0	57.0	85	1000	280	4000	565	40	2.49
-32	2"	50.8	63.8	80	1160	320	4640	630	40	2.78

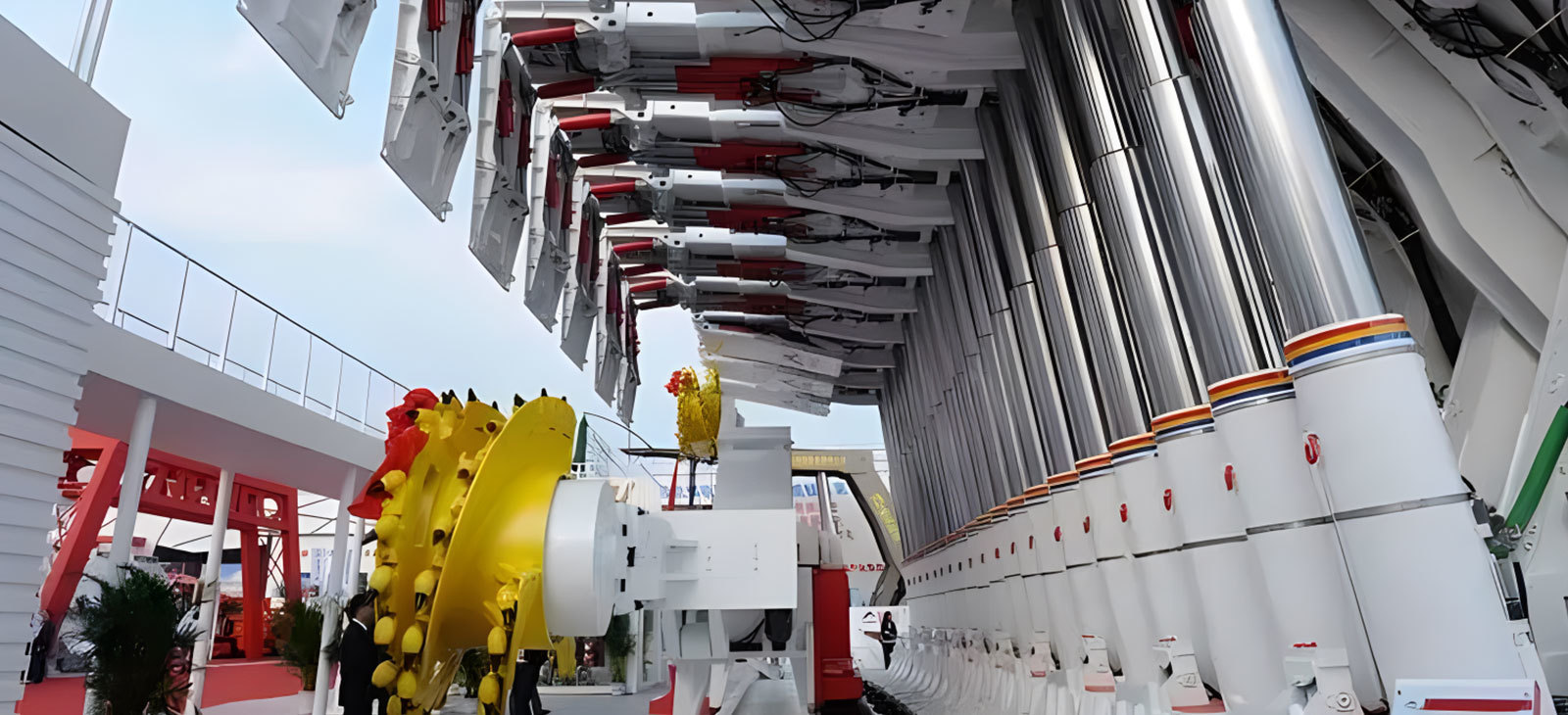

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
