Suitable for transporting chemical solvents and corrosive liquids with a concentration of 98%; Temperature Range: -40°C~+120°C; Color: Black,blue,green

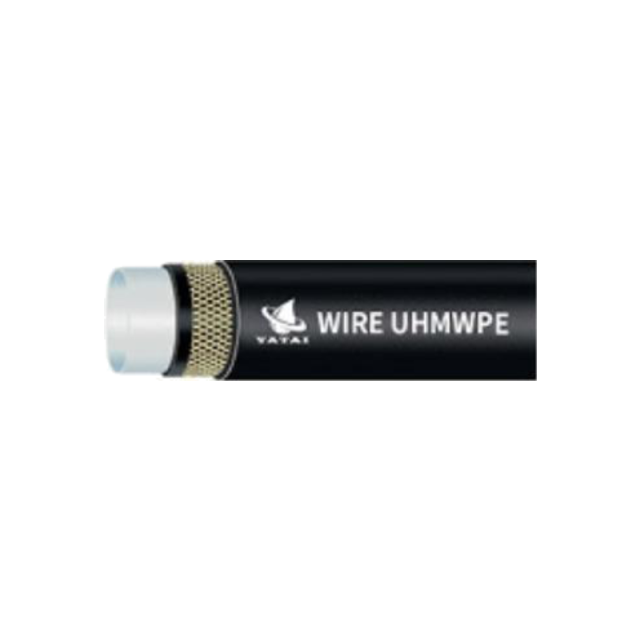

Steel wire braided chemical conveying pipe is a high-quality conveying pipe, which is widely used to deal with high-concentration chemical solvents and corrosive liquids. This delivery pipe adopts high-strength steel wire braided structure to ensure its excellent durability and reliability. It can show excellent performance whether it is handling 98% concentration of chemical solvents or working in the temperature range of -40°C to +120°C.

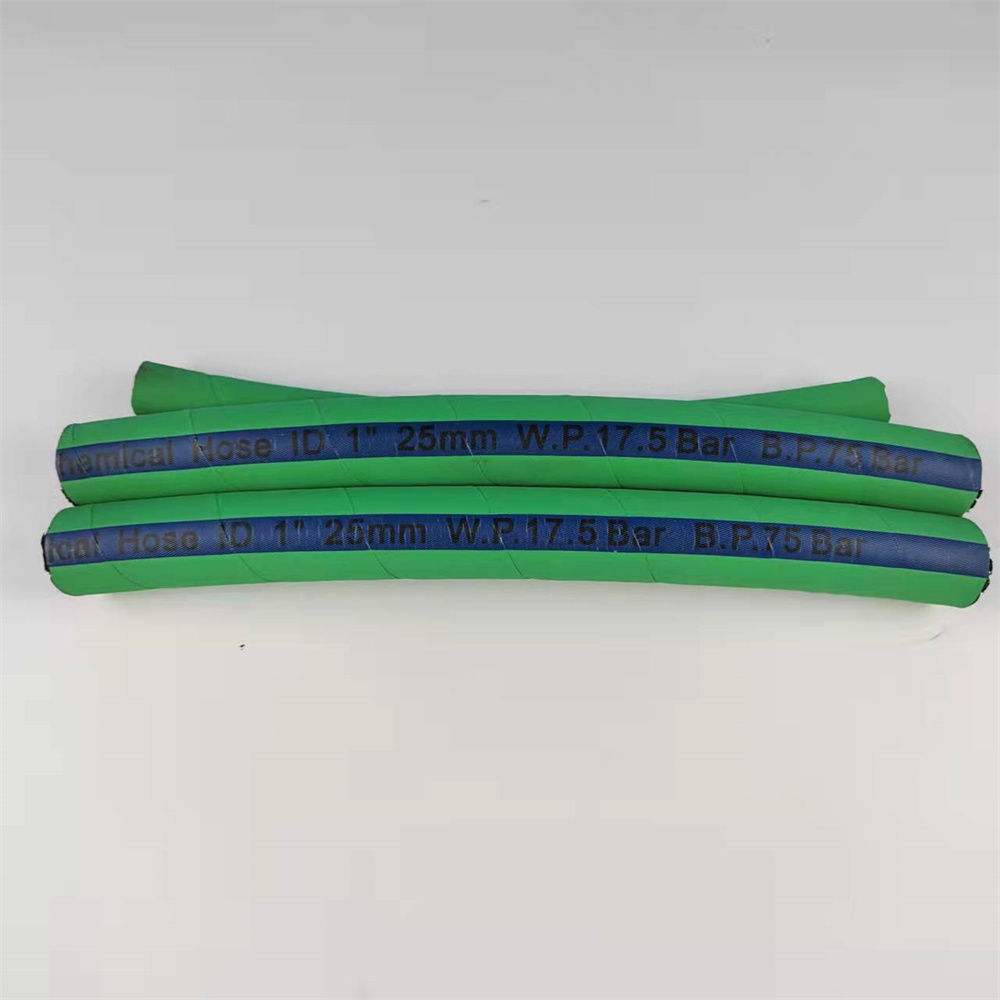

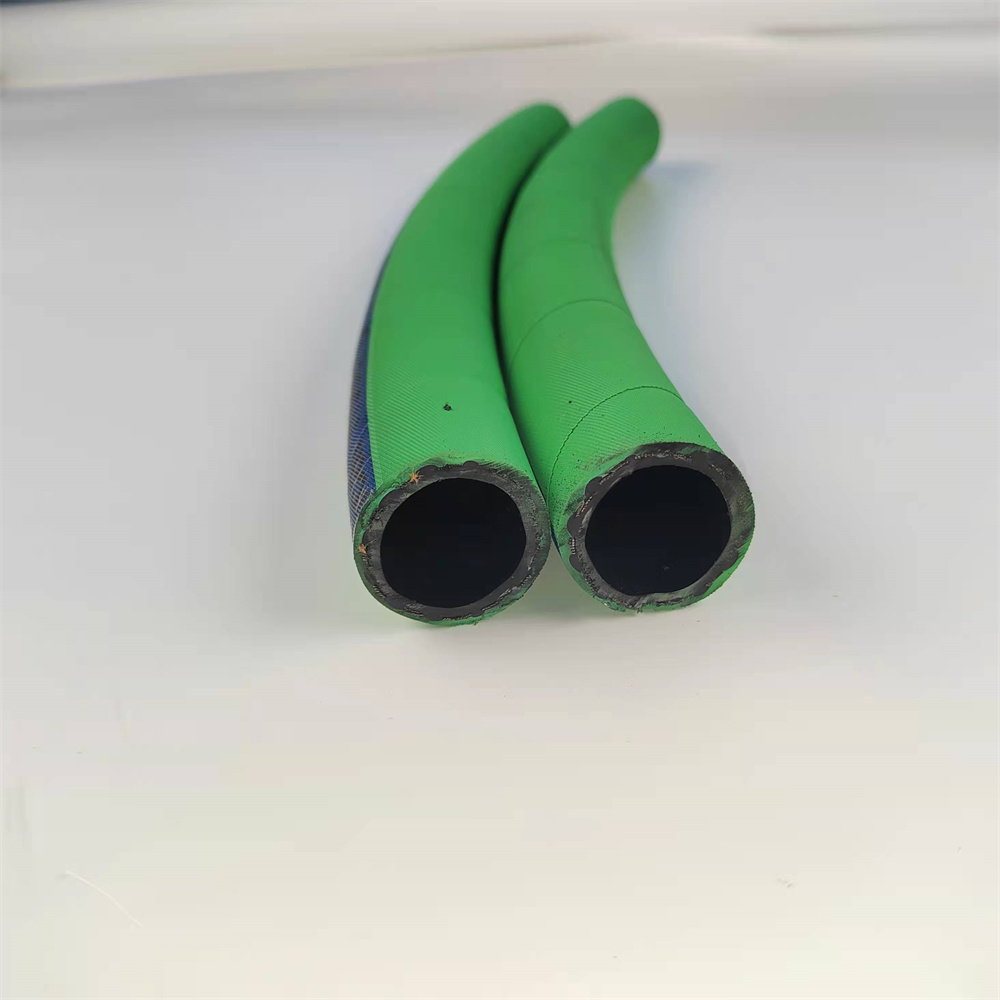

There are a variety of colors, including black, blue and green, to meet the aesthetic needs of different customers. In addition, the length of this delivery pipe can be customized according to actual needs, ensuring that it meets the needs of various application scenarios. Whether it is an industrial production line or a laboratory environment, steel wire woven chemical transfer pipe can provide excellent performance and is ideal for handling corrosive liquids.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	12.0	250	3600	1000	14400	90	50-100	0.19
-4	1/4"	6.4	13.2	225	3250	900	13000	100	50-100	0.22
-5	5/16"	7.9	15.2	215	3100	860	12400	115	50-100	0.26
-6	3/8"	9.7	17.4	180	2600	720	10400	125	50-100	0.34
-8	1/2"	12.7	20.5	160	2300	640	9200	180	50-100	0.41
-10	5/8"	16.0	23.7	130	1900	520	7600	205	50-100	0.51
-12	3/4"	19.1	27.7	105	1500	420	6000	240	50	0.60
-14	7/8"	22.2	30.5	100	1500	400	5800	280	50	0.75
-16	1"	25.4	33.7	97	1260	388	5040	300	50	0.85
-18	1.1/8"	28.6	40.3	90	1350	360	5220	400	40	1.10
-20	1.1/4"	31.8	42.5	62	900	248	3600	420	40	1.22
-24	1.1/2"	38.1	48.5	50	720	200	2880	500	40	1.41
-29	1.13/16"	46.0	57.2	45	675	180	2610	600	40	1.76
-32	2"	50.8	62.0	40	580	160	2320	630	40	1.88

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
