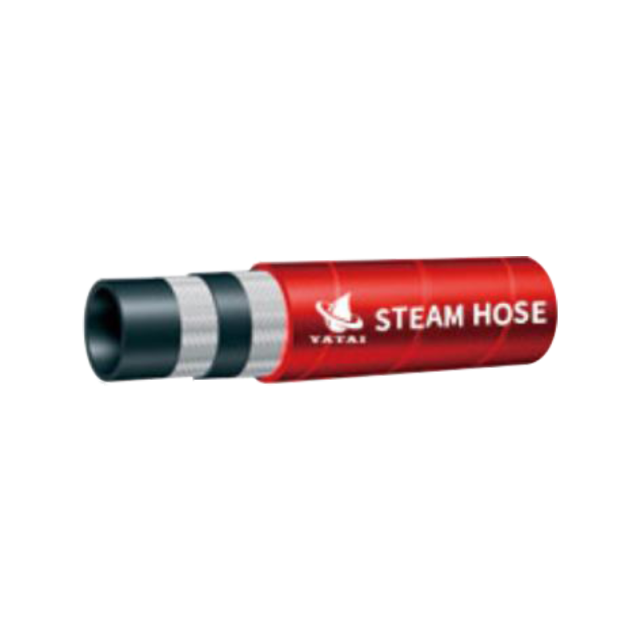

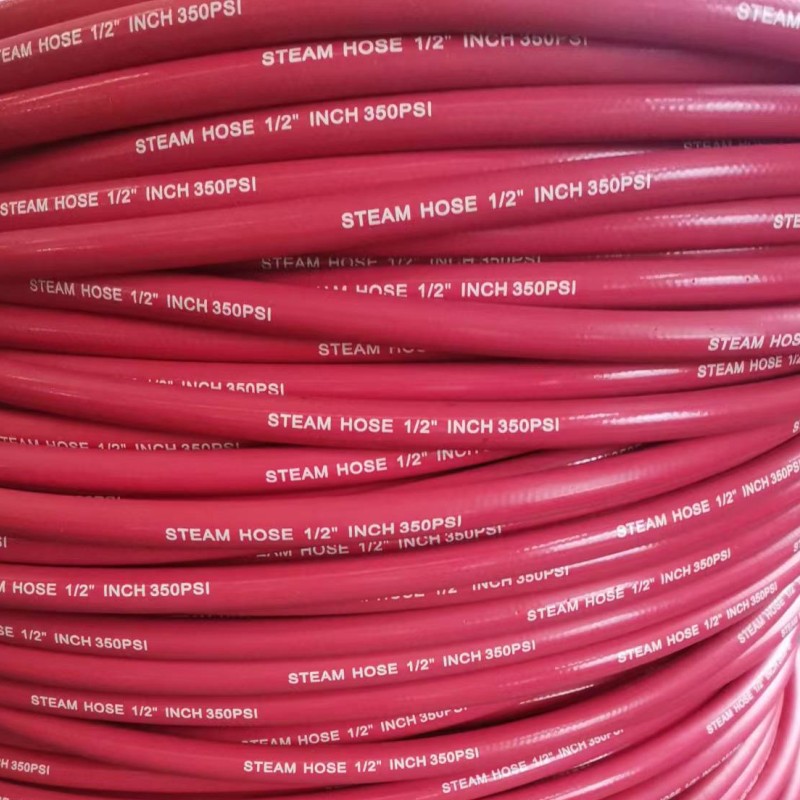

This fabric woven steam pipe has a unique design and is suitable for transporting steam, hot water, hot air and other purposes. It has a wide temperature range and can operate stably in environments ranging from -40°C to 220°C, providing a reliable guarantee for transportation needs in various high temperature environments. It is woven with high-quality fabric, which has good wear resistance and aging resistance, ensuring the long service life of the pipeline. The color has two choices of black and red, which can meet the different visual needs of customers. In addition, the steam pipe is easy to install and simple to maintain, which can effectively reduce engineering costs and improve work efficiency. Whether in industry, construction or agriculture, this fabric woven steam pipe can play an excellent performance, for all kinds of transportation tasks to provide reliable protection.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-3	3/16"	4.8	12.5	160	2300	640	9200	40	50-100	0.15
-4	1/4"	6.4	14.5	145	2100	580	8400	45	50-100	0.16
-5	5/16"	7.9	16.8	130	1900	520	7600	55	50-100	0.19
-6	3/8"	9.7	18.6	110	1600	440	6400	70	50-100	0.24
-8	1/2"	12.7	22.5	93	1350	372	5400	85	50-100	0.32
-10	5/8"	16.0	26.2	80	1150	320	4600	105	50-100	0.39
-12	3/4"	19.1	29.5	70	1000	280	4000	130	50	0.52
-16	1"	25.4	36.0	55	800	220	3200	150	50	0.66
-20	1.1/4"	31.8	43.5	45	650	180	2600	190	40	1.05
-22	1.3/8"	35.0	50.3	40	580	160	2320	240	40	1.25
-24	1.1/2"	38.1	63.8	33	480	132	1920	300	40	1.65
-32	2"	50.8	74.0	25	360	100	1440	630	40	1.93

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
