Suitable for industrial suction and discharge of petroleum-based hydraulic oil; Temperature Range: -30°C ~+100°C

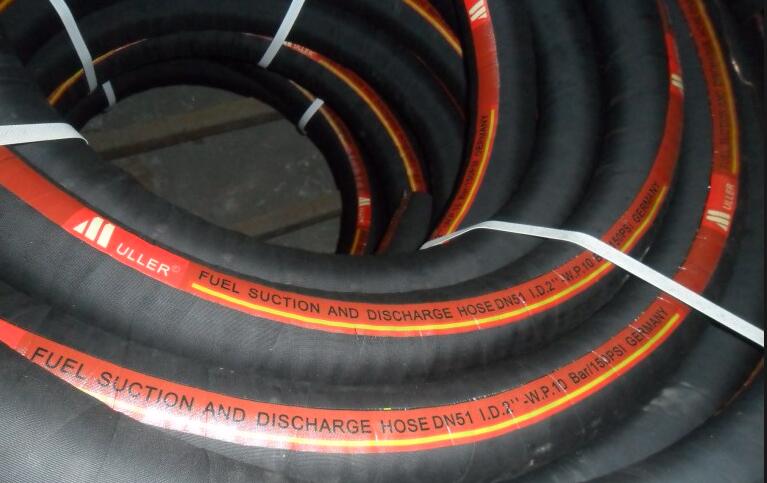

Heavy oil suction and drainage pipe is an important industrial equipment, which is widely used in all kinds of machinery, equipment and systems. The tubing is advanced in design and robust in structure, capable of withstanding large pressures and flows. Its length can be customized according to actual needs, up to tens of meters, to meet the needs of various complex working conditions.

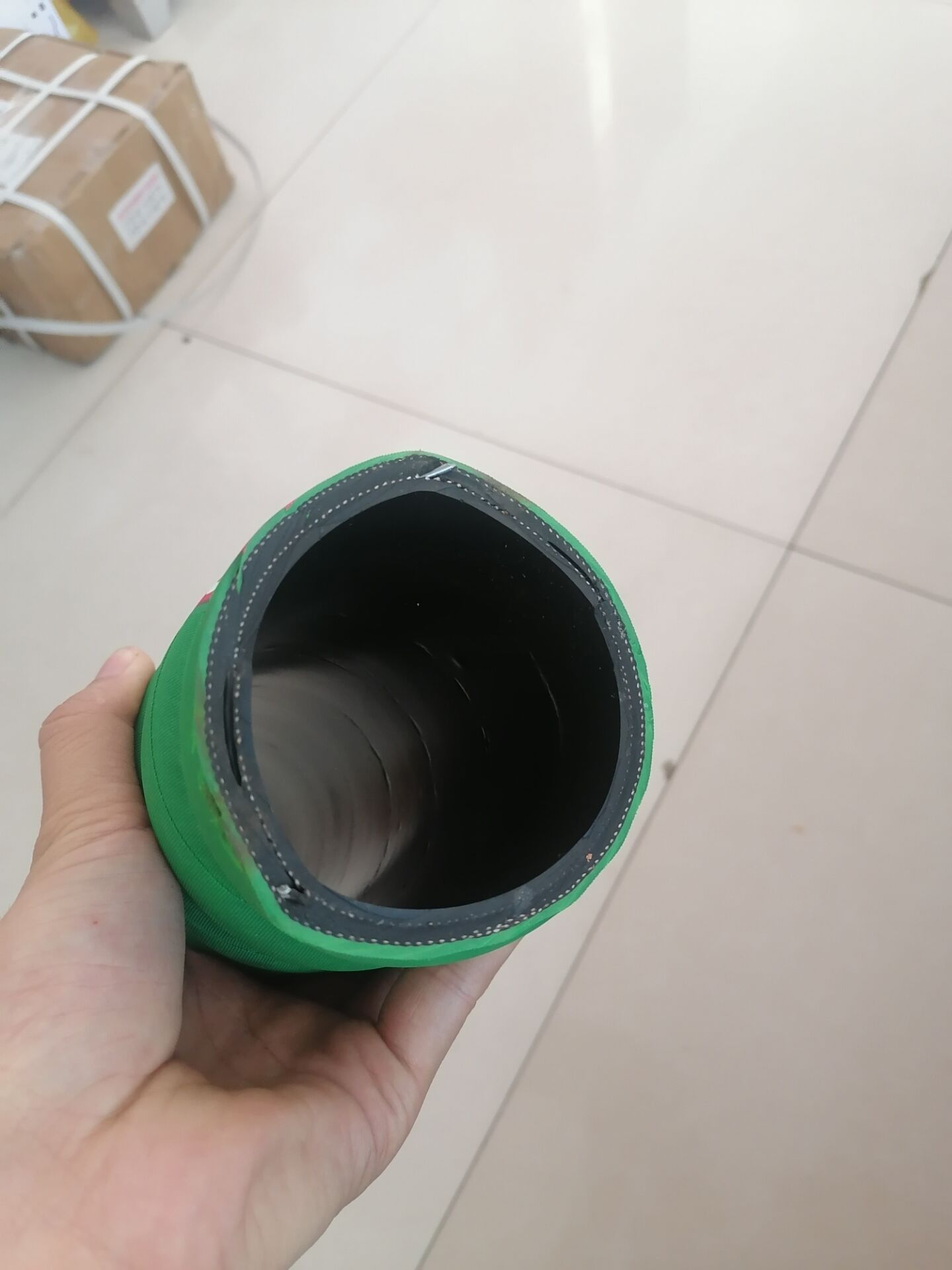

The tubing is made of high-quality materials, with high wear resistance, corrosion resistance, and high temperature resistance, ensuring its long-term stability and reliability. At the same time, it also has a good oil suction and discharge function, which can efficiently complete the oil transportation and discharge tasks. In short, heavy-duty oil suction and discharge pipe is an efficient, safe and reliable industrial equipment, which provides important support for modern industrial production.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-12	3/4"	19.1	30.8	20	300	60	900	114	60	0.76
-16	1"	25.4	36.8	20	300	60	900	150	60	0.94
-20	1.1/4"	31.8	44.8	20	300	60	900	192	60	1.53
-24	1.1/2"	38.1	51.4	20	300	60	900	228	60	1.88
-29	1.3/4"	45.0	58.4	20	300	60	900	270	60	2.16
-32	2"	50.8	64.4	20	300	60	900	306	60	2.41
-40	2.1/2"	64	78.4	20	300	60	900	384	60	3.10
-48	3"	76	90.8	20	300	60	900	456	60	3.82
-56	3.1/2"	89	106.2	20	300	60	900	534	60	4.82
-64	4"	102	119.2	20	300	60	900	612	60	5.45
-82	5"	127	146.2	20	300	60	900	762	60	8.14
-96	6"	152	171.6	20	300	60	900	912	60	9.83
-128	8"	203	224.8	20	300	60	900	1218	60	15.81
-164	10"	254	280.8	20	300	60	900	1524	10	26.80
-192	12"	304	334.2	20	300	60	900	1824	10	33.89

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
