Suitable for pneumatic brake equipment and other pneumatic equipment in motor vehicles and their trailers; Temperature Range: -40°C~+70°C

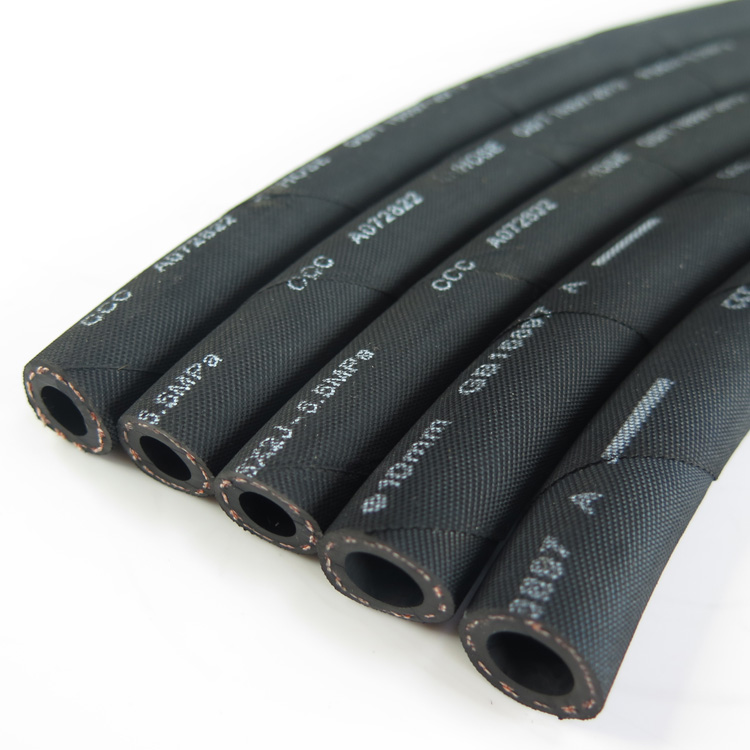

The pneumatic brake hose is a vital part of the automobile pneumatic brake system, which mainly undertakes the task of transmitting pressure. The hose is made of high-quality materials, with excellent durability and stability, and can work normally in a high-pressure environment to ensure the efficiency and safety of the braking system.

It is suitable for all kinds of automobile pneumatic braking systems, whether it is a car, truck or bus, you can see its figure. The length of the hose can be customized according to actual needs to meet the needs of different models. In short, the pneumatic brake hose plays an indispensable role in the safe driving of the vehicle and is an indispensable key component in the automobile brake system.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	M/roll	kg/m
-3	3/16"	4.8	12.0	10	150	60	870	50	50-100	0.12
-4	9/32"	7.0	14.0	10	150	60	870	55	50-100	0.13
-5	11/32"	9.0	16.0	10	150	60	870	65	50-100	0.15
-6	7/16"	11.0	18.0	10	150	60	870	70	50-100	0.20
-8	1/2"	12.7	25.0	10	150	60	870	100	50-100	0.47

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
