Suitable for use with petroleum-based hydraulic fluids; Temperature Range: -40°C ~+100°C; Appearance: Smooth or wrapped; Color: Black or multiple colors

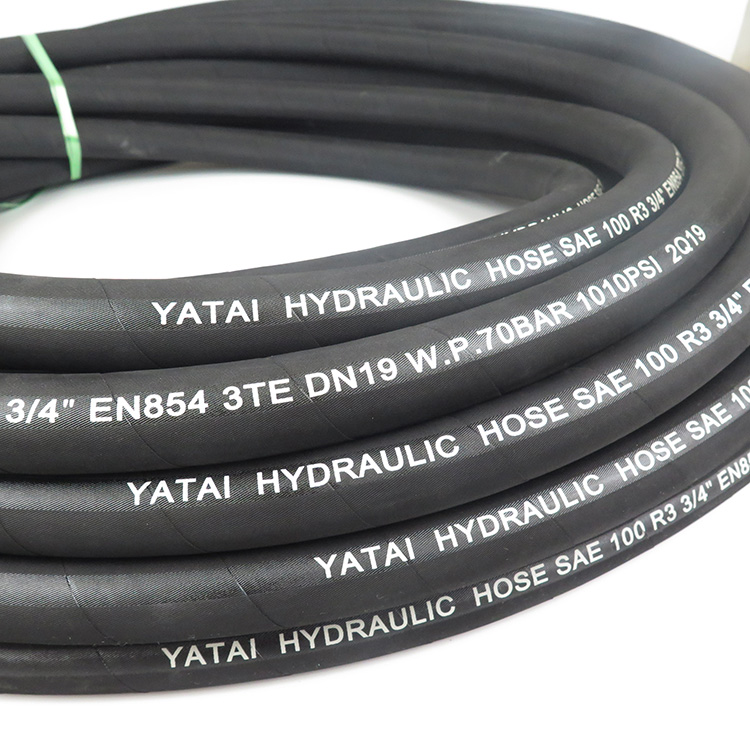

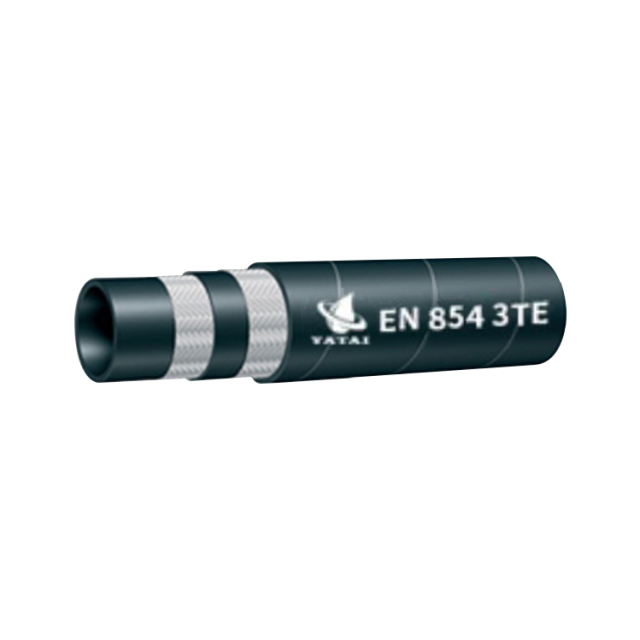

Fabric braided hydraulic hose is an important industrial pipe, which is widely used in hydraulic transmission system. It uses high-quality rubber as the raw material and is made by precision processing, with excellent high pressure resistance. In addition, the hose adopts fabric weaving technology to enhance its strength and stability. Compared with other hoses, it is more flexible and durable, and is not easy to age or damage. At the same time, it also has good wear resistance and corrosion resistance, and can adapt to various harsh working environments. The hose is widely used in engineering machinery, agricultural equipment and other fields, and is an indispensable part in the industrial field. In short, the fabric braided hydraulic hose is a high-performance industrial pipe, which has made an important contribution to the development of modern industry.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	M/roll	kg/m
-3	3/16"	4.8	12.5	160	2300	640	9200	40	50-100	0.15
-4	1/4"	6.4	14.5	145	2100	580	8400	45	50-100	0.16
-5	5/16"	7.9	16.8	130	1900	520	7600	55	50-100	0.19
-6	3/8"	9.7	18.6	110	1600	440	6400	70	50-100	0.24
-8	1/2"	12.7	22.5	93	1350	372	5400	85	50-100	0.32
-10	5/8"	16.0	26.2	80	1150	320	4600	105	50-100	0.39
-12	3/4"	19.1	29.5	70	1000	280	4000	130	50	0.52
-16	1"	25.4	36.0	55	800	220	3200	150	50	0.66
-20	1.1/4"	31.8	43.5	45	650	180	2600	190	40	1.05
-24	1.1/2"	38.1	50.3	40	580	160	2320	240	40	1.25
-32	2"	50.8	63.8	33	480	132	1920	300	40	1.65
-38	2.3/8"	60	73.0	25	360	100	1440	630	20	1.82

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
