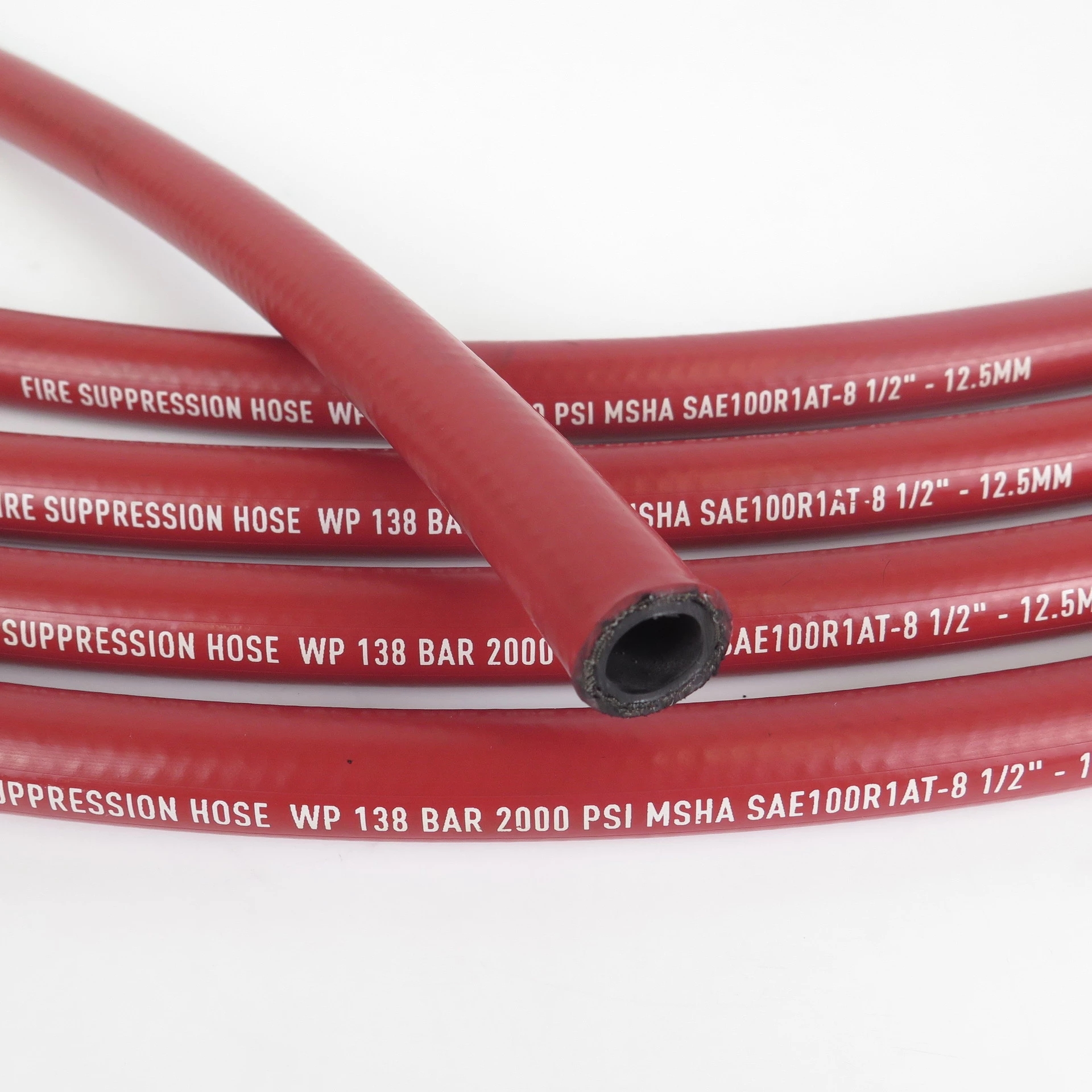

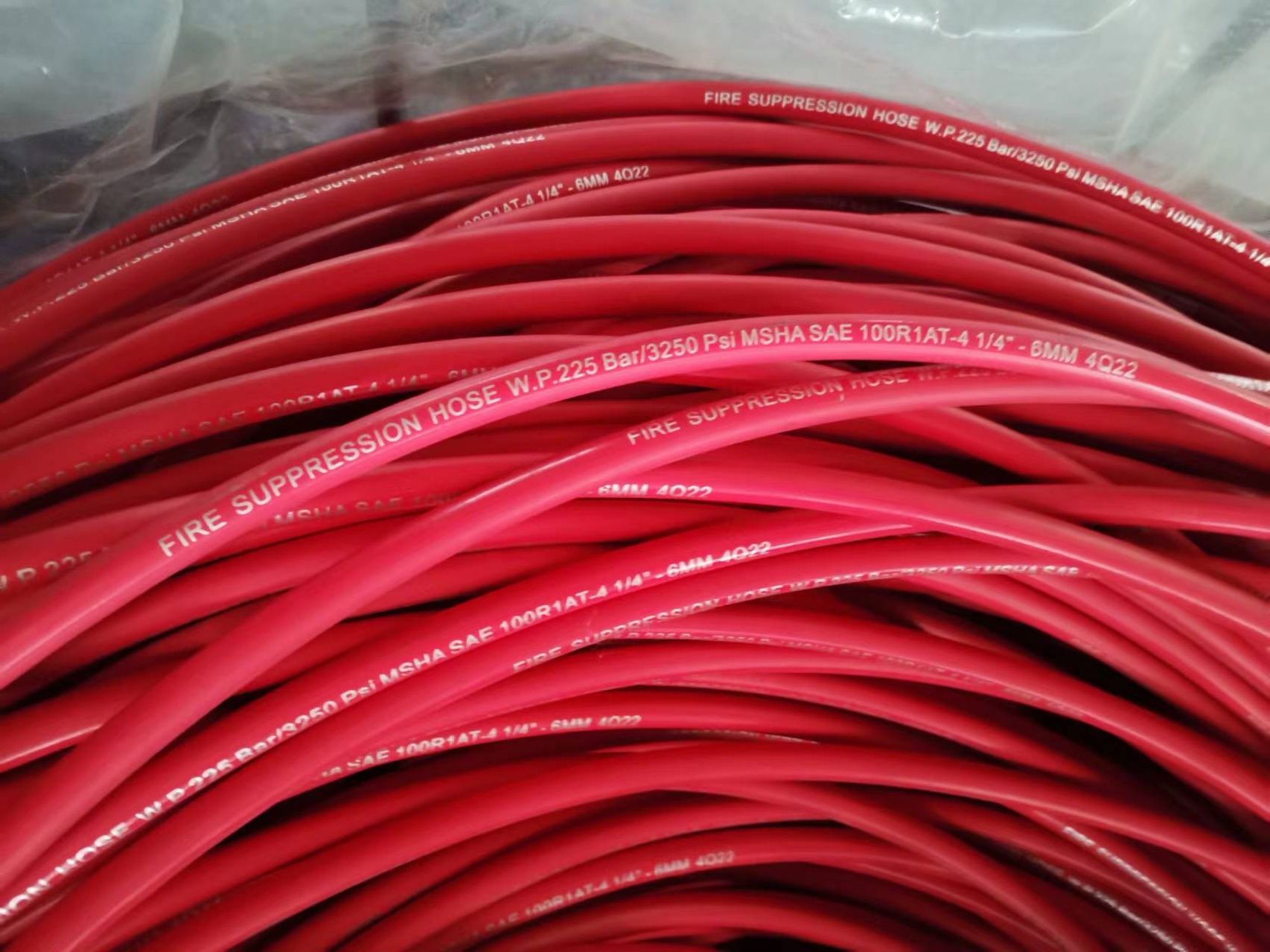

Used in fire extinguishing systems for off-road vehicles,mining equipment, and stationary engines.The hose presents a red outer layer for easy identification in the fire extinguishing system; Temperature Range: -40°C~+100°C

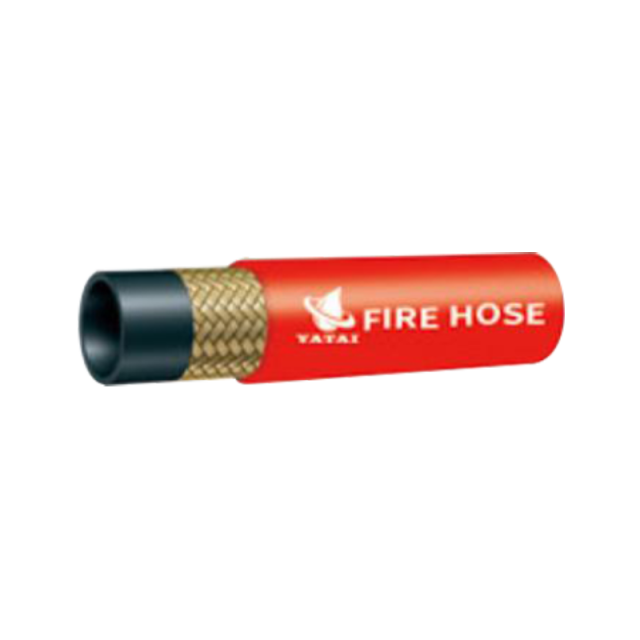

Fire extinguishing system hoses play a vital role in stationary engine fire extinguishing systems such as off-highway vehicles, mining equipment, and ships. This hose adopts a red outer design, which significantly improves the recognition of the fire extinguishing system and facilitates quick positioning and use in emergency situations. The hose material is durable and can operate stably in harsh environments.

Its temperature range is highly adaptable and can work normally under temperature conditions of -40°C to 100°C. Whether it is a cold polar region or a hot desert, it can exert an excellent fire extinguishing effect. The unique structure of the hose has superior wear resistance, stretch resistance and fatigue resistance, ensuring its reliability and safety in various complex scenarios. In addition, the hose is easy to install and maintain, providing users with great convenience. Its length and size can be customized according to specific needs to meet different fire extinguishing needs. In short, this fire extinguishing system hose is ideal for fixed engine fire extinguishing systems.

Specifications			Outer diameter	Working pressure		Burst pressure		Bending radius	Length	Weight
dash	inch	mm	mm	Bar	psi	Bar	psi	mm	m/roll	kg/m
-4	1/4"	6.4	13.2	225	3250	900	13000	100	50-100	0.22
-5	5/16"	7.9	15.2	215	3100	860	12400	115	50-100	0.26
-6	3/8"	9.7	17.4	180	2600	720	10400	125	50-100	0.34
-8	1/2"	12.7	20.5	160	2300	640	9200	180	50-100	0.41
-10	5/8"	16.0	23.7	130	1900	520	7600	205	50-100	0.51
-12	3/4"	19.1	27.7	105	1500	420	6000	240	50	0.60
-16	1"	25.4	33.7	97	1260	388	5040	300	50	0.85
-20	1.1/4"	31.8	42.5	62	900	248	3600	420	40	1.22
-24	1.1/2"	38.1	48.5	50	720	200	2880	500	40	1.41
-32	2"	50.8	62.0	40	580	160	2320	630	40	1.88

The product manufacturing meets or exceeds the requirements of SAE, DIN, GB, GOST or other industries, and has the properties of high pressure resistance, high humidity resistance, softness, high pulse pressure, no head expansion, light weight, long life, etc. The main fields and equipment involved include ships, vehicles, construction machinery, mining, agriculture, construction, environmental protection, wind power, transportation, petroleum, electric power, food, chemical industry, metallurgy, injection molding, etc...
